Manual of Procedures

This Manual of Procedures (MOP) is a handbook that details this study’s conduct and operations as well as facilitates consistency in protocol implementation and data collection across study participants. It transforms the study protocol into a guideline that describes each step of the study and how it is to be executed. The MOP is provided to each member of the Study Team. The MOP contains an adequate amount of detail that study staff and contractors could run the study consistently with only the information contained in the MOP and its appendices. The Study Team (NCEH/ATSDR staff and contractors) must be aware of the terms of award, required reporting, and data and safety monitoring.

The Pease Study Protocol 7161.0 was approved by the CDC Institutional Review Board (IRB) on 09/12/2018.
A Certificate of Confidentiality (CoC) has been issued for this study. A CoC is a special privacy protection to help researchers protect the privacy of people enrolled in sensitive health-related research.
The Office of Management and Budget (OMB) approved the information collection request (ICR) under the Paperwork Reduction Act (PRA) on 08/28/2019 (OMB Control No. 0923-0061, expiration date 08/31/2022).

2.0 Brief Overview of the Study Protocol

Per- and polyfluoroalkyl substances (PFAS) are a family of environmentally and biologically persistent chemicals used in industrial applications such as aqueous film-forming foam (AFFF), used to extinguish flammable liquid fires. Since the 1970s, military bases in the U.S. have used AFFF with PFAS constituents for firefighting training as well as to extinguish fires. At some military bases, AFFF use has resulted in the migration of PFAS chemicals through soils to ground water and/or surface water sources of drinking water for bases and/or surrounding communities. In 2016, the U.S. Environmental Protection Agency (USEPA) issued a lifetime health advisory level of 0.07 total micrograms of perfluorooctanoate (PFOA) and perfluorooctane sulfonate (PFOS) combined per liter of drinking water (µg/L). In response to growing awareness of the extent of PFAS contamination across the U.S., Section 8006 of the Consolidated Appropriations Act of 2018 authorized the Agency for Toxic Substances and Disease Registry (ATSDR) to conduct a research study on the human health effects of PFAS contamination in drinking water.

In response, ATSDR is conducting the Pease Study, which will serve as a proof-of-concept model for a multi-site study of PFAS health effects. The existence of a large body of state and local environmental monitoring and population blood testing data makes the Pease community in Portsmouth, NH, particularly suitable as ATSDR’s initial PFAS research study site. From approximately 1970 until 1991, the Air Force used AFFF for firefighting and training at Pease Air Force Base. The base closed in 1991 and was converted to a large business and aviation industrial park in 1993, the Pease International Tradeport. In 2014, PFAS drinking water concentrations were detected (0.35 µg/L PFOA and 2.4 µg/L PFOS) at levels well above what was to become the USEPA lifetime health advisory level (0.07 µg/L PFOA/PFOS). In 2015-2017, the New Hampshire Department of Health and Human Services (NH DHHS) offered a PFAS blood testing program to the community. The blood testing program showed that the Pease population had concentrations of some types of PFAS that were two to three times higher than national estimates.

The Pease Study will be cross-sectional in design, drawing from a convenience sample of people with and without exposure to PFAS-contaminated drinking water from Pease. The main goals of the study are to: 1) evaluate the study procedures and methods to identify any issues that need to be addressed before embarking on a national multi-site study; and 2) examine associations between health outcomes and measured and historically reconstructed serum levels of PFAS. ATSDR will examine the association between PFAS compounds and lipids, renal function and kidney disease, thyroid hormones and disease, liver function and disease, glycemic parameters and diabetes, as well as immune response and function in both children and adults. In addition, ATSDR will investigate if PFAS is related to differences in sex hormones and sexual maturation, vaccine response, and neurobehavioral outcomes in children. In adults, additional outcomes of interest include cardiovascular disease, osteoarthritis, osteoporosis, endometriosis, and autoimmune disease.

3.0 Study Staff Responsibilities

The Study Team responsibilities are described in this section.

The Principal Investigators and NCEH/ATSDR staff perform duties of both the study site and of a data coordinating center and the following responsibilities:

Developing all study materials including the MOP and study forms
Protecting participants' rights
Submitting documents to regulatory bodies (i.e., IRB, OMB)
Ensuring compliance with regulatory requirements (i.e., IRB, OMB)
Developing and implementing:

Data management procedures including the data flow and procedures for data entry, error identification and correction

Quality control procedures
Reports - enrollment, participant status (e.g., withdrawals), adverse events, independent safety monitoring body reports

Reporting and monitoring of Adverse Events (AEs) and Serious Adverse Events (SAEs)
Data analysis
Manuscript writing and publication

The site contractor staff perform the duties of both the study site and of a data coordinating center and the responsibilities include the following as relevant:

Ensuring compliance with regulatory requirements (i.e., IRB, OMB)
Protecting participants' rights
Recruiting, screening, and enrolling of participants
Obtaining informed consent from each participant
Collecting study data and following participants through study completion

Implementing:

Data management procedures including the data flow and procedures for data entry, error identification and correction

Quality control procedures
Data delivery
Reports - enrollment, participant status (e.g., withdrawals), adverse events, independent safety monitoring body reports

Reporting and monitoring of Adverse Events (AEs) and Serious Adverse Events (SAEs)
Data analysis
Manuscript writing and publication

ATTENTION: COVID-19 Safety Precautions in the Pease Study are described in detail in Appendix G.

Briefly:

Cloth face coverings for all study staff and study participants will be used in accordance with CDC guidance, and hand washing facilities with soap and water will be provided. Hand sanitizer will also be available near the door, and surgical masks will be provided for participants who do not bring their own cloth face covering.

Before entering study office, all study staff will be screened for symptoms and will have temperature check prior to arrival of the first participant. Screening will include a temperature check as well as questions about the presence of any symptoms associated with COVID-19. Questions on symptoms will include presence of any of the following:

Cough
Shortness of breath or difficulty breathing
Fever
Chills
Muscle pain
Sore throat
New loss of taste or smell
Exposure to people known to have disease or symptoms listed above in the last 14 days

If any contractor staff develop symptoms they will be instructed not to come to work, and to inform the Pease Study team, If a contractor staff develops symptoms consistent with COVID-19, ATSDR will pause all enrollment activities. If the contractor staff subsequently tests negative, we will consult with CDC and local/state public health professionals before resuming activities. If the contractor staff tests positive ATSDR will notify all staff and participants who have been in contact with the positive individual and consult with OSSAM and local/state public health to determine additional actions.

If a participant exhibits symptoms after entering the facility they will be asked to leave and the facility will be cleaned and disinfected with a disinfectant listed on EPA List N, following CDC guidance, before reopening.

Additional actions that will be used to reduce the potential for SARS-CoV-2 transmission include:

Scheduling appointments such that never more than 9 individuals (staff and participants, based on the size and configuration of the space) are in the facility at the same time
Increase physical space between employees and participants (e.g., physical barriers such as partitions)
Use signs, tape marks, or other visual cues such as decals or colored tape on the floor, placed 6 feet apart, to indicate where to stand when physical barriers are not possible
Requiring use of surgical masks for staff and cloth face coverings or surgical masks for participants
Limiting sampling area access to a maximum of 9 people (based on area size and configuration) at a time, with a door monitor allowing one person inside for each person that exits
Providing proper hand washing facilities
Providing hand sanitizer and surgical masks for participants who do not bring their own cloth face covering upon entry into the facility for a physical appointment
Providing signage showing reasons for precautions and proper wear of cloth face coverings

4.0 Recruitment

4.1. Outreach activities

ATSDR will work with NH DHHS and the Pease CAP to conduct outreach to encourage participation. The Pease CAP has offered to assist in recruitment of Pease and referent children and adults, and CAP involvement will be crucial in conducting outreach for the study. In advance of the start of the study, outreach will involve announcements to local elected officials, local media, community organizations, and the Portsmouth schools (Attachment 5). Outreach may also involve meetings with community representatives, medical societies, school officials, and/or public meetings. Although active in outreach, both NH DHHS and the Pease CAP will not directly obtain consent, intervene, or interact with research participants.

As part of the outreach, ATSDR will provide a factsheet to the Pease Development Authority (PDA) and Tenants Association of Pease Tradeport (TAP) so that it is included in newsletters and email notices to subscribing firms at the Pease Tradeport (Attachment 5, Attachment 7a&b, Attachment 9c). ATSDR and study investigators may request employers at Pease, PDA and TAP for rosters of current and former employees at the Pease Tradeport to assist with recruitment efforts. The study will also provide the factsheet to the Portsmouth schools, local media outlets, and to community organizations in Portsmouth (Attachment 5, Attachment 7d&e, Attachment 9c).

4.2 Screening and Eligibility Criteria

This section details the screening procedures outlined in the protocol to determine if an individual is eligible to participate in the study. If individuals must be enrolled in the study within a specific window of time following completion of the screening procedures, then such requirements should be included in the MOP.

Adults will be 18 years or older, and children will be 4-17 years of age at enrollment.

ATSDR will recruit, screen for eligibility, and enroll in three waves. The exposure group will be recruited in Waves One and Two. ATSDR estimates that 90 percent of the exposure group will be enrolled in Wave One (n=1,215), that is, will be past participants of the 2015-2017 NH DHHS PFAS blood testing program. NH DHHS will assist ATSDR by sending out letters of invitation to its former blood testing program participants. To achieve the desired sample size, the other 10 percent of the exposure group (n=135) will be recruited in Wave Two. These will be people who were eligible for the PFAS blood testing program but did not take part. The referent group will be recruited in Wave Three (n=275), which can occur concurrently with Wave One and Wave Two. Wave Two and Wave Three recruits will call to volunteer after ATSDR opens those waves to enrollment.

4.3. Recruitment strategies.

4.1.1 Wave One Recruitment from Biomonitoring Recruitment Frame

ATSDR will first recruit from those who participated in the NH DHHS Pease biomonitoring program in 2015-2017. The NH DHHS, which manages the Pease biomonitoring records and possesses the recruitment frame for the Pease Study, will send out an introductory letter indicating its support for, and encouraging its former participants to contact ATSDR to take part in the ATSDR Pease Study (Attachments 6a&6b). The letter will provide a toll-free line that the interested person can call ATSDR to request participation in the study and/or ask any questions about the study. ATSDR will screen each interested caller using a Wave One eligibility screening script (Attachment 6c).

4.1.2 Wave Two Recruitment of Additional Exposed Children and Adults

Given that the Pease biomonitoring program recruited a convenience sample, no statistical sampling will be required. All biomonitoring participants in the recruitment frame will be recruited until the list is exhausted or until the required sample size is reached. If sample size requirements are not met in Wave One, ATSDR will further recruit individuals who were eligible but did not participate in the biomonitoring program. ATSDR will launch a media campaign to announce Wave Two (Attachment 5). A recruitment flyer will be sent to parents of other children identified as attending daycare centers at Pease before 2014 who didn’t participate in biomonitoring in 2015-2017 (Attachment 7a). Advertisement in local public media and through PDA and TAP would encourage other eligible adults to participate in the study (Attachment 5). The flyers will provide a toll-free number that interested recruits can call ATSDR to request participation in the study and ask any questions about the study (Attachment 7b). ATSDR will screen each interested caller using an eligibility screening script (Attachment 7c).

4.1.3 Wave Three Recruitment of Referent Children and Adults

For efficiency, Wave Three may occur concurrently with Waves One and Two. ATSDR will recruit a small referent group of 175 children and 100 adults not exposed to PFAS-contaminated drinking water.

ATSDR will work with school officials to approve this school-based recruitment. ATSDR will also request that the schools distribute a flyer describing the study to students and instruct the students to give the flyer to their parents. Children will be recruited through outreach to Portsmouth schools and day care centers (for those 4-5 year old) (Attachment 7d). Recruitment of adult referents will include outreach to current adult education students among the five colleges at Pease (i.e., students who first attended these schools after closure of the Haven Well), Portsmouth government employees (AFSCME Local #1386), Portsmouth community organizations, and/or specific Portsmouth neighborhoods (Attachment 7e). ATSDR will screen each interested caller using an eligibility screening script (Attachment 7c).

Both exposure and referent households may have more than one eligible adult and/or child, and some parents may want to enroll in both adult and child studies. Trained study staff will use the recruitment tracking form (Attachment 8) to track recruitment success and to calculate non-response bias.

4.1.4. Recruitment Flow Diagram

An overview of the study processes, presented in a flow diagram in Figure 1, describes each of the study's major steps.

In total, ATSDR seeks to enroll 1,625 participants (1,100 adults and 525 children and their parents). ATSDR will not recruit by

5.0 Screening Log

A Screening log provides documentation of all individuals evaluated for study eligibility. It should include the identification number and individual’s initials, age, gender, screening date, and eligibility status.

It may also contain the randomization number if different from the screening number. The MOP describes the contents of the Screening Log, specifically how data are entered, and processes for secure storage. A Sample Screening Log is available in Appendix B.

Note: This information is usually part of the reporting requirements for data and safety monitoring.

5.1 Study Flow Diagram

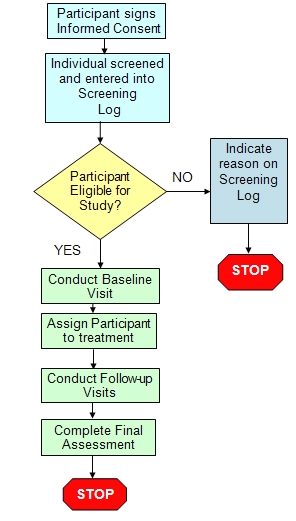

An overview of the study processes, presented in a flow diagram in Figure 1, describes each of the study's major steps.

Figure 2: Study Flow Diagram

5.2 Eligibility Criteria

In total, ATSDR seeks to enroll 1,625 participants (1,100 adults and 525 children and their parents). ATSDR will not recruit by

For the exposure group (n=1,350), ATSDR will enroll 1,000 adults and 350 children. Eligible participants had to work at, live on, or attend childcare at the former Pease Air Force Base or the Pease International Tradeport, or live in a nearby home that was served by a PFAS-contaminated private well. Drinking water exposures must have occurred at some time between 2004 and May 2014, after which remediation of the public water supply occurred.

For the referent group (n=275), ATSDR will enroll 100 adults and 175 children. Eligible participants, never exposed to PFAS-contaminated drinking water from Pease, will come from other areas of Portsmouth, NH. Birth mothers of referent children likewise must never have had PFAS drinking water exposure.

To restrict this study to drinking water exposures, any adult occupationally exposed to PFAS will not be eligible for the study (i.e. ever firefighters or in chemical manufacture). Likewise, children whose birth mothers were occupationally exposed will not be eligible. This restriction applies to both the exposure and the referent group. ATSDR assumes that 5 percent of the people who volunteer will not meet eligibility requirements. ATSDR will screen 1,578 people from the NH DHHS PFAS blood testing program in Wave One. ATSDR will screen at least 142 exposed people in Wave Two, and at least 289 unexposed people in Wave Three. This will require an annual time burden of 124 hours for eligibility screening.

At enrollment, ATSDR will obtain adult consent, parental permission, and child assent before data collection begins. Each child will enroll with a parent, who ideally will be the child’s birth mother, as ATSDR will ask details about the child’s exposure, pregnancy, and breastfeeding history.

For each participant, ATSDR will take body measures, collect blood and urine samples for chemical and biomarker analysis, and administer a questionnaire on exposures and medical history. ATSDR assumes that 20 percent of parents will also enroll as adults; therefore, 420 parents will take the child questionnaire long form, while 105 parents will take the short form to reduce burden. Parents and children will also complete assessments of the child’s attention and behaviors.

ATSDR will ask for permission to compare adults’ and children’s medical histories with their medical records. ATSDR will also ask for permission to check children’s school records to compare their behavioral assessment results.

5.3 Informed Consent (see Section 11.3.)

Detailed instruction on administering an informed consent package are outlined in the section 11.3; briefly general:

Consent will be obtained at the study office before any data collection commence
Study interviewers as directed by the study manager/coordinator will discuss the nature of the study with the individual and sign the consent form
A copy of the signed consent will be given to the individual after the signing and the original signed copy of the consent be stored will be stored in the study office
Re-consent process, if individuals need to be re-consented at any part of the study.

The CDC IRB approved Informed Consent form is included as Appendix F in the MOP.

5.3.1. HIPAA Authorization

The Health Insurance Portability and Accountability Act authorization form is a part of the informed consent form and will be reviewed and signed by the study participant in addition to reviewing and signing the informed consent form.

6.0 Health and Safety Plan

6.1. Introduction

This Study Office/Site Health and Safety Plan (SHSP) defines applicability and responsibility regarding compliance with the Agency for Toxic Substances and Disease Registry (ATSDR) Health and Safety Program for Hazardous Substance Field Activities.

This SHSP defines site requirements and protocol applicable during all activities. It extends to all ATSDR employees, ATSDR contractors, and site visitors invited by ATSDR.

Site emergency response procedures and any potential fire, explosion, health, or safety hazards of the operation must be communicated to all personnel. Noncompliance with site safety procedures will not be tolerated. Personnel not observing safety procedures could be suspended from participation in site activities.

Development of this plan included consideration of current safety standards and recommendations as defined by the Environmental Protection Agency (EPA), the Occupational Safety and Health Administration (OSHA), the National Institute for Occupational Safety and Health (NIOSH), the American Conference of Governmental Industrial Hygienists (ACGIH), health effects and standards for known contaminants, and procedures designed to account for potential exposure to unknown substances.

Additional PPE requirements and precautions added to prevent the spread of COVID-19 during Pease study activities are detailed in Appendix G.

6.2 Personnel Training Requirements

All site personnel will be trained in accordance with the requirements contained in the CDC/ATSDR Mandatory Training Requirements. At a minimum, all personnel will be trained to recognize on-site hazards, the provisions of this SHSP, and identification of responsible personnel.

All personnel are required to complete the following training courses:

Blood Borne Pathogen Training
Safety Survival Skills Part 1 - General Responsibilities
Personal Protective Equipment Training
Human Research Protections Training
First aid/CPR/Automated External Defibrillator (AED) Training

All site personnel and agents (on-site contractors, fellows, and others appointed or retained to work under the auspices of CDC) who intend to collection information from human subjects must have a Scientific Ethics Verification (SEV) number.

6.3 Personal Protective Equipment

Anyone entering the site must be fully aware of and protected against potential hazards. The purpose of personal protective equipment (PPE) is to shield or isolate individuals from chemical, physical, and biological hazards that could be encountered at the site.

Personnel working with blood or urine samples are required to wear Level D PPE to include closed toed shoes, long pants, and gloves. Personnel working with centrifuges should wear eye protection. Respirators are not required. Gloves should be changed in between handling each participant’s sample. Urine containers, used pipettes, gloves, and blood collection materials should be placed in appropriate biohazard containers.

6.4. Emergency Procedures

On-site personnel will use the following standard emergency procedures. Notify the site lead of any on-site emergencies. The site lead is responsible for ensuring that appropriate emergency procedures are followed.

6.4.1 Personal Injury

When an injury occurs the site lead will assess its nature. A qualified first aid provider should initiate appropriate first aid and continue appropriate emergency medical services. If necessary, injured personnel will be transported to a local area hospital.

6.4.2 Fire or Explosion

If a fire or explosion occurs on site, the emergency will be announced, and all personnel will leave the area through emergency exits (unless directed otherwise). The fire department shall be contacted (911), and all personnel shall be moved a safe distance from the involved area. If it is safe to do so, site personnel can take the following actions:

Use on site fire-fighting equipment to control or extinguish the fire; and
Remove or isolate flammable or other hazardous materials that could contribute to the fire.

6.4.3 Natural Hazards

The site lead has responsibility for safety of ATSDR personnel if natural hazards (e.g., thunderstorms, tornadoes, hurricanes, etc.) occur. The site lead will inform personnel of current and impending weather conditions.

6.4.4 Equipment Failure

If any site worker experiences a protective equipment failure or alteration that affects the protection factor, that person shall immediately wash hands as needed and replace the failed equipment.

If any other on-site equipment fails to operate properly, the site lead shall be notified and will then determine the effect of this failure on continuing operations at the site.

6.4. Centrifuge Safety Procedures

Prior to starting any operation that deals with a biological, chemical or radiological hazard, emergency procedures should be established to determine the course of action in the case of an incident. The emergency procedures should be based on the materials being used, the hazards associated with the materials, the type of equipment being used, the operations, and the type of incident that could result. The emergency procedures should be posted near the centrifuge. All centrifuge operators should be familiar with the emergency procedures.

1. Put on appropriate personal protective equipment (gloves) when responding to ALL centrifuge incidents and BEFORE opening the centrifuge to retrieve materials.

2. If a tube breaks or a spill occurs, and an aerosol containing an infectious agent is generated, turn off the centrifuge, and immediately evacuate the area. Be sure to notify others in the laboratory to evacuate. Secure the area and notify the Office of Health and Safety.

If tubes containing hazardous materials break or leak, the entire rotor load and centrifuge should be considered contaminated. The tubes, rotor, adapters, buckets and centrifuge chamber should be decontaminated using appropriate decontamination procedures and then washed.
There is no single cleaning, disinfecting, or decontaminating process that is suitable for all tubes, rotors, and other centrifuge components. The selection of a disinfectant should be based on the agent involved and the rotor material. If the wrong method or type of cleaner is used, it could result in damaged equipment. It is important to follow the manufacturer's recommendations.
If a leak should occur, call DLS Logistics for further assistance (Cynthia Weekfall - 770-488-7227)

3. If a liquid spill (with no aerosol) has occurred, contain the liquid and decontaminate as appropriate.

4. If a tube is identified as being broken while removing it from the rotor/carrier, or if there is a suction sound when removing the tube, do not continue to pull the tube from the rotor/carrier. Leave the tube in the rotor/carrier and contain the liquid by sealing the rotor/carrier. Remove the rotor/carrier from the centrifuge, place it in a biological safety cabinet or chemical fume hood, depending upon the hazard, and continue operations to remedy the spill.

7.0 Safety Reporting

The risks associated with this study are minimal. There is a small chance of unexpected or adverse events occurring during this project. Unanticipated problems involving risk to the subjects or others will be reported to the CDC Human Institutional Review Board (IRB) in accordance with institutional policies and procedures.

The most likely adverse event is a participant feeling lightheaded or fainting during blood collection. The phlebotomist will receive training to respond to such situations. The tests and procedures conducted by trained study staff are for research purposes only and are not diagnostic exams. They are not a substitute for an evaluation by a medical professional. The study will not perform any clinical treatments or health interventions as part of the study.

If a participant loses consciousness, falls, is unable to stand, or experiences chest pain the study staff will decide whether to advise the adult participant or the parent of the child participant to seek immediate medical treatment or to contact emergency medical services. Study staff have identified appropriate local medical care providers that participants may be referred to if clinical results suggest medical attention is needed.

List medical care providers in the vicinity of the study office (contractor):

Definitions of adverse events, serious adverse events and unanticipated problems
Responsibilities of NIA and investigators
Reporting processes
Description of terms used in reporting

Table. Handling adverse events.

Event

Action

Participant feels:

Dizziness

Nausea

Light-headed

Weak

Nurse will:

Have participant lie down, prop his/her feet up, examine and monitor the participant

Participant:

Loses consciousness

Falls

Is unable to stand

Experiences chest pain

Nurse will:

CALL 911 and notify other health personnel in the building.

Any adverse event, no matter the severity, will be recorded. The log form for adverse events may be found below.

Name	Date	Time	Description of event
Name Address Phone		am/pm

Unanticipated problems involving risk to the subjects or others will be reported to the CDC Human Institutional Review Boards (IRBs) in accordance with institutional policies and procedures [http://intranet.cdc.gov/od/oads/osi/hrpo/guides/4-incidents-v1.1.pdf

8.0 Study Compliance

This section describes what constitutes a protocol deviation and process for reporting deviations to appropriate parties, including the site investigator, the DSMB or Safety Officer. Only protocol deviations that impact participant safety should be reported within 24 hours of occurrence if possible, or as soon as they are discovered. All other deviations should be reported routinely to the independent safety monitoring body. Investigators need to follow the CDC IRB requirements for reporting protocol deviations to the Board.

In addition, if ATSDR monitors discover any of these deviations during a site visit, they should list any such occurrence in their monitoring report. The site study coordinator should maintain a log of all protocol deviations.

Protocol deviations/violations may include, but are not limited to, the following:

Enrollment of an ineligible participant
Failure to obtain Informed Consent
Enrollment of a participant into another study
Wrong questionnaire or neurobehavioral testing administered to participant

A log for recording protocol deviations should also be included in the appendix. See Protocol Deviations Form Template.

9.0. Body Dimension and Blood Pressure Measurements

Blood pressure, height, and weight may be measured in any order, but the resting blood pressure should be obtained after the subject has been in the seated position for at least five minutes. It is also desirable for blood pressure to be measured before venipuncture. Record all measurements on the physical measurement form. Write “refused” for any measurement refused by the participant.

9.1. Height and Weight

Height and weight of participants will be measured and recorded. Determine the BMI using the attached chart.

Material and Equipment

SECA Stadiometer (Accuu-Hite Measuring Device with Level Bubble)
Health-O-Meter Physician Beam Scale

Procedure

Before measuring height, check to make sure the floor is level, the wall is at a 90-degree angle to the floor, the wall is straight, and the Stadiometer is mounted perpendicular to the floor. Make sure the participant is barefoot or wearing thin socks.

For accurate measurement of height, the participant must be standing in a vertical plane. To achieve this position, have the participant stand erect on the floor, with back against the vertical Stadiometer, arms hanging freely by the sides, heels against the wall, and feet or knees together—whichever comes together first. Have the participant look straight ahead, with head in the Frankfort horizontal plane. The Frankfort Plan is an imaginary line from the lower margin of the eye socket to the notch above the tragus of the ear (the fleshy cartilage partly extending over the opening of the ear). When aligned correctly, the Frankfort Plane is parallel to the horizontal headboard and perpendicular to the vertical back piece of the Stadiometer.

Ask the participant to inhale deeply. Place the headboard over the crown of the head, with the headboard forming a right angle to the scale. The headboard should touch the scalp lightly.

Ask the participant to step out from under the headboard. Record the height to the nearest 0.5 in on the Physical Measurements Form.

If actual height of participant is unable to be measured because the headboard does not rest directly over the scalp, estimate height to the nearest 0.5 in and record on the Physical Measurement Form. Answer “yes” to the question, “Was there a modification in protocol?”

If participant is wheelchair bound, request estimate of height from participant. Document the height on the Physical Measurement Form and answer “yes” to the question, “Was there a modification in protocol?”

Before measuring weight, check to make sure scale is on a hard level surface. Step on and off the scale a few times to align all internal parts. Place both poise weights on zero. The beam pointer should float gently up and down and not at the top or bottom of the trig-loop.

Set the large and small poises to indicate the approximate weight. Have the participant stand in the middle of the platform of the scale, with head erect and eyes looking straight ahead. Continue to adjust the small poise until the pointer is centered. It is not necessary to wait for the pointer to stop moving in order to read the correct weight. Add the reading of the small poise to the reading of the large poise for the total weight. Record the results, to the nearest pound, on the Physical Measurements Form.

If the participant is too obese to stand securely on the scale’s platform when looking straight ahead, he/she may stand sideways on the scale to take the weight measurement; facing to the side rather than the front will provide the participant a wider base and more stability. If a participant has a prosthetic limb or breast prosthesis, measure weight with the limb on. If participant is frail or unsteady, measure weight while participant is lightly steadied by a member of the office staff. If a participant is unable to stand on the scale for a weight measurement, do not attempt a weight measurement. Answer “yes” to the question on the Physical Measurements Form, “Was there a modification in protocol?”

If the weight of the participant is between 350-400 pounds, use the following guidelines:

Place the large (lower) poise weight in the 250 lbs. notch (this will weight 350 lbs. with the addition of the 100 lbs. counterweight).
Hang the counterweight on the lower poise bar in the notch between 100 lbs. and 150 lbs.
Move the small poise weight along the upper poise bar until the pointer is centered in the trig loop
To arrive at the participant’s total weight, add 350 lbs. to the weight registered by the small poise weight. EXAMPLE: for a client weight 378 lbs., the large poise weight will be on 250 lbs. and the small poise weight on the upper bar will be on 28 lbs.

If the weight of the participant exceeds 400 lbs., use the following guidelines:

Place the largest (lower) poise weight in the 300 lbs. notch (this will weight 400 lbs. with the addition of the 100 lbs. counterweight).
Hang the counterweight on the lower poise bar at the notch between 100 lbs. and 150 lbs.
Move the small poise weight along the upper poise bar until the pointer is centered in the trig loop.
To arrive at the participant’s total weight, add 400 lbs. to the weight registered by the small poise weight.

9.2 Blood Pressure

Blood pressure (BP) level is a major risk factor for coronary heart disease, congestive heart failure, and stroke. Heart rate reflects autonomic nervous system function and cardiovascular fitness. The measured BP level is subject to biological and observer variability. The purpose of a specific measurement protocol, or training and certifications of technicians and of ongoing quality control is to minimize variability due to known exogenous factors and to reduce imprecision and biases in measurement.

Materials and Equipment

Blood pressure cuffs in four sizes (or automatic)
Stethoscope
Measuring tape (for arm circumference)
Watch or stopwatch (to time five-minute rest and resting heart rate).
Copy of chart for choosing correct BP cuff sizes
Information sheet on interpretation of BP from JNC
Physical Measurements Form
Referral Form

Procedure

The participant should be seated and relaxed in a comfortable chair. Record the date of the procedure on the physical measurements form during the five-minute rest period, and make sure that the room temperature is between 70- and 76-degrees Fahrenheit. The surroundings should be free of excessive noise or distractions. Before the BP measurement procedure, explain to the participant what to expect and how long the procedure will take. The following script is suggested:

“This part of the visit involves taking your resting blood pressure. It will take about 10 minutes. We would like you to sit with both feet on the floor and your arm supported on the table. We will have you sit quietly for five minutes. Then we will take your blood pressure three times, two minutes apart. We will tell you your blood pressure readings and give you some material to help you interpret them at the end of the session.”

Use the proper cuff size to avoid under- or over-estimation of the correct blood pressure. Selection of the proper sized cuff is based on the guideline that the length of the inflatable bladder in the cuff should be at least 40% of the arm circumference. If necessary, measure the right arm circumference as follows:

Ask the participant to bare the upper arm.
Instruct the participant to sit or stand holding forearm horizontal, i.e., parallel to the floor.
Measure arm length from the acromion (bony extremity of the shoulder girdle) to the olecranon (tip of the elbow) using a metric tape.
Mark the midpoint on the dorsal (back) surface of the arm.
Ask the participant to relax arm along the side of the body.
Draw the measuring tape snugly around the arm at the midpoint mark, keeping the tape horizontal. Tape should not indent the skin.
Use the following chart to determine appropriate cuff size (Chart adapted from the Human Blood Pressure Determination by Sphygmomanometry by the American Heart Association).

Arm Circumference (cm)	Cuff Name
17-21.9	Child/Small Adult
22-29.9	Adult
30-37.9	Large Adult
38-47.9	Thigh

The participant should not talk, eat, or drink during the procedure, as these activities will elevate blood pressure readings. Both feet should be on the floor and the forearm should rest on a table or other support. The subject should sit up, not slouch.

After the resting period, place the appropriate cuff around the upper right arm so that the mid-height of the cuff is at heart level. Palpate the patient’s brachial artery and place cuff so that artery is aligned with the cuff arrow marked “artery”. Place the lower edge of the cuff, with its tubing connections, two centimeters above the natural crease across the inner aspect of the elbow. Wrap the cuff snugly around the arm, with the palm of the participant’s hand turned upward. Secure the wrapped cuff firmly by applying pressure to the locking fabric fastener over the area where it is applied to the cuff. Do not wrap the cuff too tightly around the arm.

Occasionally there will be a participant whose upper arm is too thick and short for the thigh cuff or on whom the thigh cuff pops open on inflation. The alternative procedure in this case is to obtain the resting blood pressure in the right forearm as follows:

Measure the forearm circumference at midpoint between the olecranon and the ulnar stylus (wrist bone on the pinkie side).
Select the proper size cuff based on the forearm measurement.
The blood pressure procedure is the same otherwise.
Document on the Physical Measurements Form

Record the three readings on the physical measurements form. Determine appropriate actions for elevated blood pressures based on the guidelines below and inform the participant of the recommended action.

Referrals

If a referral is required (BP > 140/90 on at least 2 readings), note the participant’s BP on a referral form, and give the marked form to the participant. If the participant does not have a healthcare provider, the office staff will provide a referral to closest medical providers. The organization of referral should be noted on the Physical Measurements Form.

It is up to the participant to share or not to share the abnormal results shared with his/her healthcare provider. Study stuff may advise participant but is not responsible for making him/her to share the data.

Participants with abnormal blood pressure readings on at least two of the three readings will be referred to a healthcare provider according to the following guidelines:

*This chart reflects blood pressure categories defined by the American Heart Association.

Check One	BP Category	Systolic BP (mm Hg)		Diastolic BP (mm Hg)	Action*
	Normal	<120	AND	<80	Your blood pressure is normal. You should continue to have your regular appointments and check-ups with you doctor
	Elevated	120-129	OR	<80	Your blood pressure is slightly above normal. You should continue to have your regular appointments and check-ups with you doctor.
	Hypertension (Stage 1)	130-139	OR	80-89	Your blood pressure is very high. You should call your doctor and ask for an appointment. Please take this form with you and show it to your doctor. If you do not have a doctor, we will help to find you one.
	Hypertension (Stage 2)	≥ 140	OR	≥ 90	Your blood pressure is very high. You should call your doctor and ask for an appointment. Please take this form with you and show it to your doctor. If you do not have a doctor, we will help to find you one.
	Hypertensive Crisis	>180	AND	>120	Your blood pressure is dangerously high. You cannot continue with the study. You should call you doctor right now and ask to be seen as soon as possible. Your doctor may want you to go to the emergency room instead of waiting for an appointment. Please take this form with you and show it to your doctor. If you do not have a doctor, we will help to find you one.

Blood pressure categories

The five blood pressure ranges as recognized by the American Heart Association are:

Normal

Blood pressure numbers of less than 120/80 mm Hg are considered within the normal range. If your results fall into this category, stick with heart-healthy habits like following a balanced diet and getting regular exercise.

Elevated

Elevated blood pressure is when readings consistently range from 120-129 systolic and less than 80 mm Hg diastolic. People with elevated blood pressure are likely to develop high blood pressure unless steps are taken to control the condition.

Hypertension Stage 1

Hypertension Stage 1 is when blood pressure consistently ranges from 130-139 systolic or 80-89 mm Hg diastolic. At this stage of high blood pressure, doctors are likely to prescribe lifestyle changes and may consider adding blood pressure medication based on your risk of atherosclerotic cardiovascular disease (ASCVD), such as heart attack or stroke.

Learn more about your risk with our Check. Change. Control. Calculator™.

Hypertension Stage 2

Hypertension Stage 2 is when blood pressure consistently ranges at 140/90 mm Hg or higher. At this stage of high blood pressure, doctors are likely to prescribe a combination of blood pressure medications and lifestyle changes.

Hypertensive crisis

This stage of high blood pressure requires medical attention. If your blood pressure readings suddenly exceed 180/120 mm Hg, wait five minutes and then test your blood pressure again. If your readings are still unusually high, contact your doctor immediately. You could be experiencing a hypertensive crisis.

If your blood pressure is higher than 180/120 mm Hg and you are experiencing signs of possible organ damage such as chest pain, shortness of breath, back pain, numbness/weakness, change in vision or difficulty speaking, do not wait to see if your pressure comes down on its own. Call 911

If two or three repeated systolic or diastolic measurements are abnormal but fall in different categories, determine the appropriate category based on their average. All elevated blood pressures will be recorded on the Participants Body and Blood Pressure Report.

10.0. Blood Sample Collection, Processing and Shipping Protocol

Venipuncture should be performed in the fasting state after blood pressure measurement. In adults, 40 ml of blood shall be collected to recover and about 14 ml of sera for the analyses of PFAS and clinical and other effects biomarkers, as well as 2ml of whole blood for the analyses of glycated hemoglobin and whole blood reserve. In children, 30 ml of blood shall be collected to cover 2 ml of whole blood and about 11 ml of serum for PFAS and clinical and other effects biomarkers (See Attachment 3 for details).

The volumes to be collected have been adjusted after the selection of commercial laboratories (LabCorp Inc.; and SUNY laboratory) for the analyses of clinical and other effects biomarkers.

The study office will need to have appropriate space designated for blood processing where whole blood and serum aliquots can be accomplished.

The ATSDR, contractor, and commercial laboratory will determine whether conditions on site are appropriate to accomplish this task.

NOTE: Universal Precautions should be adhered to as defined in the OSHA Blood-borne Pathogens Standard (29 CFR 1910.1030). General Health and Safety Precautions are listed in the Section 6.0.

ATTENTION: Before blood collection make sure that all staff comply with COVID-19 Safety Precautions in the Pease Study as described in Appendix G.

10.1. Blood Collection Procedure

Have the following items on hand and available for use. Blood collection and processing supplies will be provided by CDC as indicated. Contractor provided supplies/equipment are also listed below.

CDC provides:

Disposable gloves
Tourniquet
Alcohol disinfectant swabs
Gauze pads
21g butterfly needle or 21g Vacutainer straight needle (smaller 23 g needle may be required for difficult collection)
Tube needle holder
Four 10 ml red top tubes [Serum Separator Tubes - SST can be used except for PFAS serum collection; e.g. 1 red top tube and 3 SST) for Serum
One 3 ml EDTA purple top tube for whole blood
Adhesive bandage
Sharps disposal container for used needles
Serum tube rack
All labels

Contractor provides:

Refrigerator and -70ºC freezer for storage of serum and blood samples
Smelling salts
Electrolyte drink
Basin
Cold wet cloth

Blood collection procedure guidelines:

Tie the tourniquet onto the upper arm so that it can be quickly released with one hand.
Swab the venipuncture area with alcohol pad.
Allow to air dry for 5 - 10 seconds.
Using standard venipuncture procedures puncture the vein.
After blood flow is established, loosen the tourniquet.
Collect four (three for children) red top serum tubes [(10 ml in first three tubes (two for children) and 8 ml in the fourth (third for children)

(Please note: If the child is 8 years old or younger or those who weigh less than 60 pounds use six (6) 5 ml red top collection tubes)

Push purple top tube into the needle holder.
Collect two EDTA purple top tubes (1 ml each)
Mix well (EDTA 8-10 inversions) after collection or place in a tube rocker.
Allow the vacutainer red top tubes to fill.
Red tops should be allowed to clot upright in a rack (for at least 30 min but no more than 2 hours.)
Withdraw the needle and dispose of in the sharp’s disposal container.
Apply pressure on the venipuncture site and apply a bandage.
Place labels on blood tube vial so that when the tubes are upright, the barcode looks like a ladder.
Record the sample collection using the label for “Log”. Note any problems with the collection, i.e., low volume, could not collect, etc.

For those participants who are extremely apprehensive about giving blood, follow the guidelines below:

Explain to the participant that the blood draw is designed to be as painless as possible. It may help to let the participant go on with another part of the visit and return later for the blood draw. Do not, under any circumstances, force the participant to have blood drawn.
If the blood sample is not forthcoming, the following manipulations may be helpful:

If there is a sucking sound, turn needle slightly or lift the holder in an effort to move the bevel away from the wall of the vein.
If no blood appears, move needle slightly in hope of entering vein. Do not probe. If not successful, release the tourniquet and remove needle. A second attempt can be made on the other arm.
Loosen the tourniquet. It may have been applied to tightly, thereby stopping the blood flow. Reapply the tourniquet loosely. Be sure, however, that the tourniquet remains on for no longer than two minutes at a time.
Do not attempt venipuncture more than three times.
Reassure the participants that your inability to obtain a clean venipuncture is not any sign of a medical problem on their part.
If venipuncture is unsuccessful, note on the Physical Measurements Form.

If the participant looks or feels faint, follow the guidelines below:
- Have the participant remain in the chair and sit, if necessary, with head between knees until his/her color returns and he/she feels better.
- Provide a basin if the participant feels nauseated.
- Place a cold wet cloth on the back of the neck.
- If the participant faints, use smelling salts to revive by crushing the ampoule and waving it under the nose for a few seconds.
- If the person continues to feel ill, contact a medical staff member for advice.
If it is not possible to fill all tubes (e.g., blood flow ceases, difficult venipuncture, etc.), make a note of the departure from protocol on the Physical Measurements Form. If the participant is willing, a second attempt can be made to complete the blood draw.

After blood draw is completed, the study participant may be shown to the snack area. Snacks and beverages should be available to all participants after completing the blood draw. Diabetic participants should be advised to eat and take any necessary medications at that time.

10.2. Serum Processing Procedure

Materials and Equipment Needed per Participant
- Disposable gloves (CDC)
- Automatic pipet (preferable; Contractor); Disposable plastic pipets (CDC)
- Four 10 mL red top centrifuge tubes SERUM (CDC)
- Three (3) 2 mL cryovials (CDC)
- Six (6) 12 ml vials for shipping to commercial lab (Contractor)
- Bar-coded labels CDC
- Two centrifuges (CDC)
- Freezer (Contractor)

Processing
- After the blood has been allowed to clot at room temperature for a minimum of 30 minutes (2 hours is preferred), centrifuge the red-top tubes for 15 minutes at 2400 rpm.

To maximize the amount of serum recovered from all the red top tubes after centrifugation, do the following:
1. Using a disposable or automatic pipet, transfer all of the clear serum that is free of red cells from each red top tube collected from a participant to one of the 50 ml centrifuge tube.
2. If less than approximately 2.0 mL of viable serum was able to be pipetted it is highly recommended that the red top tube completes an additional centrifuging round to obtain additional serum. Centrifuge this red top tube containing the red cell/serum mix for 10 minutes and transfer the clear serum to the 50 ml centrifuge containing the clear serum initially harvested. There should be 3-5 mls of serum from each red top when completed. Place a label for SERUM on the centrifuge tube. The label should be placed on the tube so that when the tube are upright, the barcode looks like a ladder.
3. Tighten the cap on the centrifuge tube and store in a freezer until ready to ship to CDC;
4. All vials for clinical and effect biomarkers will be shipped to commercial laboratory (See Table below).
5. Aliquots for PFAS analyses will be shipped to CDC.

Serum and Blood processing table (aliquots needed for clinical and effects biomarkers analyses).

Aliqout Number	Label	Analyte	Volume for adults	Volume for children	Storage	Lab
Serum
1	S09	PFAS	0.5 ml serum	0.5 ml serum	Frozen	DLS/CDC
2	SR	Serum reserve	1.0 ml serum	1.0 ml serum	Frozen	CDC Biorepository
3	SS	Immunoglobulin and Cytokines	1.0 ml serum	1.0 ml serum	Frozen	SUNY
4	SL1	Lipid Panel with non-HLD Cholesterol, Uric Acid, Creatinine, Thyroid Profile II, Thyroxine free (T4), Thyroid Antibodies, Testosterone, Estradiol (E2), Sex hormone Binding Globulin, FSH, Insulin-like growth factor 1 (IGF-1), Hepatic Function Panel, GGT, Glucose, Insulin, C-peptide, C-reactive protein, Rheumatoid Arthritis factor (RA), Antinuclear Antibodies (ANA)	7.7 ml serum	6.5 ml serum	Room Temp	LabCorp

5	SL2	Same as above (Adult) Tetanus/Diphtheria Antibody Profile (Children)	0.8 ml serum	0.7 ml serum	Room Temp (Adult) Frozen (Children)	LabCorp
6	SL3	Pro-insulin (Adult) MMR Antibodies (Children)	0.5 ml serum	1.0 ml serum	Frozen (Adult) Room Temp (Children)	LabCorp

7	SL4	IA-2 antibodies	1.0 ml serum	--	Frozen	LabCorp
8	SL5	anti-GAD antibodies	0.7 ml serum	--	Room Temp	LabCorp

9	SS2	Serum reserve 2	1.0 ml serum		Frozen	SUNY
		Serum subtotal (whole blood/factor 2.6)	14.2 ml (35.5)	10.7 ml (26.8)
Blood
1	WBR	WB Reserve	1.0 ml blood	1.0 ml blood	Frozen	CDC Biorepository
2	WBS	Glycated hemoglobin (HgA1c)	1.0 ml blood	1.0 ml blood	Frozen	SUNY
3	WBL	CDC w/Diff and Platelet	0.5 ml blood		Room Temp	LabCorp
		Whole blood subtotal	2.5 ml	2.0 ml

		Total blood to be collected^a	38.0 ml	ml

a. There is individual variability in the amount of sera that can be harvested from the whole blood. Each individual age, hydration, and health status influences this variability. .

10.3. Collection Log

A collection log is provided or an electronic spreadsheet may be created to record samples that are collected. Please mark the appropriate spaces on the manual log or record electronically, indicating which aliquots were collected, date collected and any problems that were encountered in collection, storage, or shipping.

10.4. Shipping instructions for serum and whole blood specimens

There are storage boxes provided for each container type. These should be used for storage of samples in the freezer or refrigerator and when samples are shipped to CDC or commercial laboratory.

Materials and Equipment Needed (when needed to be provided by contractor noted):
- Biohazard plastic bags large enough for individual specimen storage boxes to be placed inside
- Absorbent pads or other absorbent material
- Filled specimen storage boxes containing serum vials
- Styrofoam shipping containers with outer cardboard liner
- Dry ice (for Serum) (contractor)
- Dry ice label (for Serum)
- Ice packs (freeze before using) for shipping purple top tubes
- Diagnostic Specimen label (for all shipments)
- Completed FedEx air bill (contractor)
- Packing material (bubble wrap or newspaper) (contractor)
- Packing tape (contractor)

Packing Instructions (serum):

All specimens should be placed in an appropriate sized gridded storage box. Place the specimen storage boxes inside one of biohazard bags along with an absorbent pad s and seal the bag.

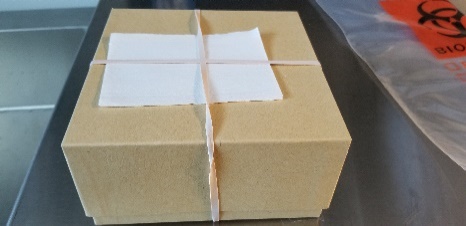

Wrap 1 rubber band horizontally along the Specimen box and 1 rubber band vertically. This will create a ( + ) design on top and ensures the box stays closed during shipping

Place an absorbent underneath the overlapping rubber bands on top of the specimen boxes

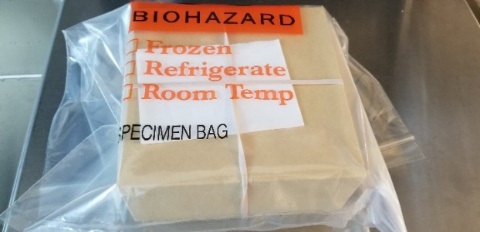

Place specimen filled storage boxes inside biohazard bag and seal bag securely shut

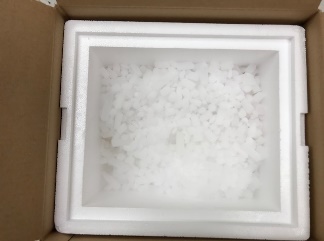

Place bagged specimen boxes inside Styrofoam shipper neatly so that the samples will likely remain in an upright position as they travel. Add 10-15 lbs. of dry ice to keep the samples frozen during transportation. Add extra packing material around the specimens (newspaper, paper towels, bubble wrap, etc.).

Prepare a Federal Express air bill for shipping and mark the appropriate boxes including the one for dry ice for the Serum shipment and overnight delivery.

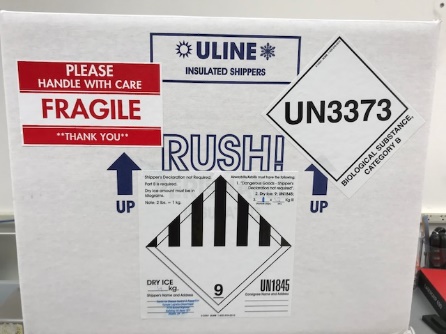

Place a Dry Ice Label and a Diagnostic Specimen Label on the outside of the shipping box containing the Serum Specimens and write in the weight of the dry ice.

Packing instruction whole blood (purple top tubes)

Wrap 1 rubber band horizontally along the Specimen box and 1 rubber band vertically. This will create a ( + ) design on top and ensures the box stays closed during shipping

Place an absorbent underneath the overlapping rubber bands on top of the specimen boxes

Place specimen filled storage boxes inside biohazard bag and seal bag securely shut

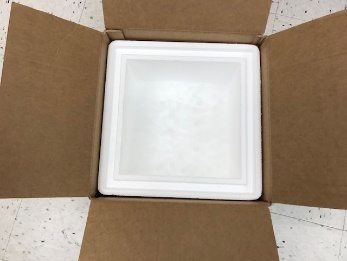

Place bagged specimen boxes inside Styrofoam shipper neatly so that the samples will likely remain in an upright position as they travel. Add frozen cold pack to keep the samples refrigerated during transportation.

Shape2 Shape3

Add additional packing material to ensure that the sample boxes will be secure in the box and will not be moving around.
Place the Styrofoam lid on the box.

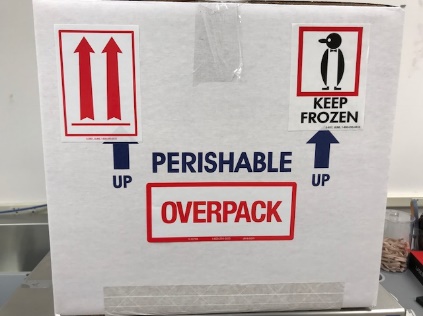

Close the outer cardboard flaps and tape using either nylon reinforced filament tape or heavy-duty packing tape Scotch Premium Heavy Duty 3750-RD Packaging Tape.
Be sure to include a paper manifest documenting the samples being sent.
Package is to be sent Priority Overnight; Ship only Monday-Wednesday, NOT over Weekend or Federal Holiday.
Send an email to the CDC coordinating staff member to inform them of the package's expected arrival date and attach an electronic copy of the manifest.

The electronic manifest should include the following information: Specimen ID, any local ID (additional ID in the vial, if applicable), sample matrix, Box#, Position within the box, sample volume, collection date-if available, analytes to be measured, any other pertinent comment. Specimen ID.

Specimen ID	Local ID (if any)	Matrix	Box #	Position in Box	Volume (mL)	Collection Date	Analytes to be measured	Any pertinent comments
							Choose an item.

Shipping Addresses:

CDC Warehouse (for PFAS samples)

3719 N Peachtree Road

Chamblee, GA 30341

ATTN: Sample Logistics- Sina De Leon Salazar

Chamblee Building 109, Room 1312B

TEL: 770-488-7227/ FAX: 770-488-4301

EMAIL: NCEHSampleLogistics@cdc.gov / wvg4@cdc.gov

CDC Biorepository (for reserve samples)

602 Webb Gin House Rd., Bldg. C

Lawrenceville, GA 30045

ATTN: Rob Davidson (440-339-5942, mobile)

Back up contact: Julie Chatt 404-263-5806 (mobile)

EMAIL: biorepository@cdc.gov

Please email the information about the shipment to the emails provided in the shipping address (biorepository@cdc.gov) the day that the package is shipped. Shipments should be made on Monday through Thursday to ensure that the shipment will arrive during a regular work-day. The same would apply for shipping to the SUNY laboratory.

SUNY Laboratory

Dr. Frank Middleton

SUNY Molecular Analysis Core

3636 Institute for Human Performance

SUNY Upstate Medical University

505 Irving Avenue

Syracuse, NY 13210

ATTN: Dr. Frank Middleton

TEL: 315-464-7721

EMAIL: middletf@upstate.edu

10.5. Urine Collection Instructions

All participants will be mailed a labeled urine collection cup (100 ml?), urine collection instructions (see Steps below), gloves, insulated cooler, and ice pack, which they’ll be instructed to store in their freezer.

The morning of their blood sampling appointment, participants will collect a first-morning urine sample (filling at least one quarter of the 125 ml collection cup, if possible), cap the container, seal the container in a plastic bag, and place in a refrigerator until they travel to the blood sampling location. Participants will transport their sample to EA staff in an insulated cooler with the frozen ice pack. Study staff will pipette 15 mL of urine into a centrifuge tube.

When you receive the urine collection kit, please put the freezer pack in the freezer so you can use it to transport your sample to the collection location. Please collect a sample of your first morning urine void on the day of your scheduled blood collection appointment. Write down the date and time of the collection. Please use the following instructions:

Step 1: When you get up in the morning, collect a sample of your urine in the provided cup the first time you use the bathroom. Please try to fill at least one quarter of the cup.

- Make sure to wash your hands with water only before collecting your sample. Do not use any soap, lotion, or other personal care products.

- Put on the provided gloves before collecting your sample.

Step 2: Cap the urine collection cup and seal in the provided plastic bag.

Step 3: Record the date and time of your collected urinary sample on your urine collection log.

- If some of the sample spills, or you forget to record the time of collection your sample will still be able to be used for the investigations. Please write down any comments you want us to know about on your collection log.

Step 4: Place your sample in your refrigerator until it is time to go to your blood collection appointment.

Step 5: Bring your urine sample, inside the provided cooler box packed with the frozen ice pack, and your urine collection log to your blood collection appointment.

The morning of their blood sampling appointment, participants will collect a first-morning urine sample (filling at least one quarter of the cup, if possible), cap the container, seal the container in a plastic bag, and place in a refrigerator until they travel to the blood sampling location. Participants will transport their sample to EA staff in an insulated cooler with the frozen ice pack. Pease study staff will pipette 15 mL of urine into a falcon tube for future creatinine or specific gravity analyses.

For urine samples for future PFAS analysis, contractor will pipette 1.8 mL of urine for the collection container into a cryovial and ship samples overnight on dry ice from the bio-specimen repository to the NCEH laboratory in Atlanta, Georgia. Study staff and NCEH/ATSDR personnel will maintain and manage proper chain of custody for all urine samples.

Centrifuge (Falcon) tubes will be placed inside freezer/storage boxes. Each box will be placed inside a plastic biohazard bag along with an absorbent pad and sealed. The bagged specimen boxes will be placed inside a Styrofoam shipping container. Dry ice will be added to the shipper and urine specimens will maintained in their frozen state. Pease study personnel will perform twice daily checks to ensure that samples remain frozen and will add dry ice as needed. All urine samples will be shipped overnight on dry ice to CDC on Thursdays and Mondays during the sample collection period. Field and bio-specimen repository staff will maintain and manage proper chain of custody for all urine samples.

To protect anonymity, the samples will be labeled with a coded identification number. The identification number on the urine sample will match the identification number on the serum sample in order to pair each individual’s blood and urine samples.

Urine samples selected for laboratory analysis will be store at CDC DLS and CDC biorepository (see section 10.4) as needed for future analyses of 18 PFAS and creatinine/specific gravity. Additional analytes may be added should methods become available.

When the analyses are completed, the PFAS test results will be reported as nanograms per milliliter of urine (ng/mL). Creatinine results will be reported as milligrams per deciliter of urine (mg/dL). Laboratory processing, analysis methods, quality assurance and quality control measures will be conducted in accordance with NCEH laboratory methods.

11.0. Interviewer methods

11.1. Interviewer Certification

All interviewers must be certified to conduct the survey. The certification procedure includes the following training:

A. HIPAA Form

B. IRB Certification

C. Confidentiality Statement

D. Completed Initial Training

E. Interviewer Training:

1. Knowledge of Survey Material

2. Contact Sheet

3. Attempt Documentation

4. Introduction of Survey to Respondent

5. Consent Form

6. FAQ Review

7. Selection of Prior Respondent or Suitable Proxy

8. Reading Techniques

9. Read Questions as Written

10. Speech/Clarity

11. Pronunciation

12. Neutral Probing Techniques

13. Knowledge of Disposition Codes

14. Recording of Answers

15. Practice Interview Scenarios

16. Interview Supervisor

17. Results to Health Care Provider

18. Human Subject Protection

Interviewers must demonstrate competency in all areas to be certified.

11.2. Interviewer Checklist

Aim for a professional look, simplicity, and comfort. The respondent should focus on the interview and not the interviewer’s manner of dress.

1. Be prepared to conduct the survey.

2. Survey Materials: a. Identification Badge

b. Bag

c. CDC laptop, Charged

d. Black Ink Pen

e. Copy of the Pre-Contact Letter sent to Respondent

f. Map & Address Listings (special needs cases)

g. Interviewer Checklist

h. Participant Response Card

h. Contact Tracking Information Form

i. Consent & HIPAA form – digital iPad application and backup paper forms

j. Questionnaire – loaded on laptop and backup paper copies

k. Gift Cards – one each for interview and blood draw

l. Appointment Form-Respondent’s Copy

m. Non-participant Form

11.3. Consent Form

As part of the CDC Institutional Review Board for Human Use requirements, all surveys require a consent form before interviewing begins. The consent form tells the participants about the study and their rights as a research participant. The interviewer should read through the consent form with the participant. The participant should initial all required pages of the consent form and sign and date the signature page(s). Two copies of the form are needed: one for the participant to keep and the other for the interviewer to return along with the completed survey.

1. Explain the Consent Form:

Summarize topic areas in the Informed Consent Packet

Read specimen storage section

Read parental permission and child assent information

Summarize HIPAA form

Leave one copy with respondent

Return one copy to field coordinator

2. Make sure that all appropriate pages are initialed by the respondent.

Make sure the adult respondent signs and dates the Adult Consent Form (p. 18-19)
Make sure the parent and child (if older than 7) sign and date the Parental Permission and Child Assent Form (p. 10-11)
Make sure the parent/guardian sings Parental Consent to release student information (p. 12)
Make sure respondent also signs and dates the Parent/Child/Adult Medical Record Abstraction form (p.20)
Be sure you have the signed Consent and Authorization Forms in your possession.

Note: The CDC IRB also requires training in human subjects’ protection. To fulfill this requirement, all interviewers will watch a video detailing the need for human subject protection or have completed other approved training. Persons who have not reviewed the video or have not completed other IRB approved training will NOT be allowed to conduct an interview.

11.4A. Conducting the Interview: Location

All interviews, except for special needs cases, were to be conducted on-site in study office at Portsmouth, NH. To reduce and minimize the potential for spread of the COVID-19, completing interview on the phone will be offered to all participants during the screening process..

11.4B Conducting the Interview: Documentation

1. Type the ID number from the Contact Sheet on first page of Questionnaire.

2. Ask ALL questions as appropriate.

11.4C Conducting the Interview: Asking the Questions

1. Guidelines for Asking Questions

Use the questionnaire conversationally. The interview should be done in an informal and relaxed atmosphere. Interviewers should avoid creating the impression that the interview is a quiz or cross examination. Interviewers must be careful that nothing in their words or manners implies criticism, surprise, approval, or disapproval.

Interviewers should know the questions so that each one can be read smoothly and transitions between questions are made without hesitation. This is possible only when the interviewer has studied the questionnaire carefully and practiced asking the questions aloud in practice interviews.

Ask each question exactly as worded in the questionnaire. Since the same questions must be asked of each respondent, the interviewer should make no changes in the phrasing of the questions. Not only are deliberate word changes to be avoided, but the interviewer must guard against accidental word changes as well.

Ask the questions in the order presented in the questionnaire. Question order needs to be the same from respondent to respondent if the interviews are to be comparable. Thus, the interviewer needs to stick strictly to the given order.

Ask every question specified in the questionnaire. In answering one question, a respondent will sometimes also answer another question appearing later in the interview. Do not skip the questions even though they may seem to have already been answered or seem repetitive unless there is a skip pattern instruction.

Transitional statements help to conclude one topic and introduce another on a questionnaire. These transition statements aid the interviewer in making the interview seem conversational. Whenever such statements appear in the questionnaire, they should be used. A respondent who has been introduced to a new topic tends to organize his or her thinking more quickly and may well answer the next few questions differently from a respondent who is still involved in thinking about the last topic. Always be sure to read the transitional statements exactly as they are written.

Repeat and clarify questions which are misinterpreted or misunderstood. Questions are phrased to be understood by respondents across the state and you will find that most of the people you interview do understand them. Occasionally, when a respondent does misunderstand or misinterprets something, you should repeat the question just as it is written in the questionnaire. If you suspect that the respondent merely needs time to think it over, simply wait and don’t press for an immediate answer. If you think the respondent needs reassuring, you may want to add to the question a neutral conversational remark such as “We’re just trying to get people’s ideas on this,” or “There are no right or wrong answers, we’re just interested in your opinions.”

Probe for meaningful answers. Sometimes it may be necessary to clarify a respondent’s answer. Some questions may seem difficult, or concern matters that the participant doesn’t usually think about, and careful probing may be required in order to arrive at meaningful answers.

Probing should always be done in a neutral manner. Your probing questions should be worded in such a way that they do not lead the participant to any particular answer. Acceptable probes include the following.

a. A brief assertion of understanding and interest.

b. An expectant pause.

c. Repeating the question or response options.

d. Repeating the respondent’s reply.

e. Providing a neutral question or comment.

f. Asking for further clarification.

g. “What do you mean?”

h. “Tell me more about what you have in mind.”

i. “What do you think?”

j. “Which answer would be closer?”

k. “Are there any others?”

Clarification for the respondent should be done if there is any doubt that the respondent did not understand or hear the question or response options. Repeat the question if needed. Repeat all response options if asked to repeat one or more of them. Do not provide definitions of words or questions. Instead, state “I am not allowed to provide definitions for words or questions, so please use whatever _____ means to you.”

It is important to give feedback to respondents to let them know that you are listening, to keep them motivated, and to encourage further response. However, this feedback should be neutral and show any approval or disapproval towards the respondent. Acceptable feedback phrases include the following.

Short

I see.

Uh-huh.

Thanks.

Long

That’s useful / helpful information.

It’s useful to get your ideas on this.

Thanks, it’s important to get your opinions on that.

I see; that’s helpful to know.

It’s important to find out what people think about this.

That’s useful for our research.

Task-related

Let me get that down.

I need to write all of this down.

I want to make sure I have that right… (repeat answer)

We have touched on this before, but I need to ask every question in the order that it appears in the questionnaire so… (ask question).

2. Closed-ended Questions

Most of the questions in the study have a set of pre-coded answers. In order to record the participant’s answers to the questions, the interviewer must circle the code number of the answer given. This is the most common type of question.

Shape4

A5. What race do you consider your child to be? Mark all that apply.

___American Indian or Alaska Native

___Asian

___Black or African American

___Native Hawaiian or Other Pacific Islander

___White

___Refused to answer

Example:

If the respondent had answered that he or she considered their child to be “White” the interviewer would put a check mark next to the “White” response..

3. Other-specify Questions

Some questions have an “other-specify” option. In these cases, if a respondent provides an answer that is not part of a pre-coded list, the interviewer will write the answer exactly as the participant says.

Shape5

A1. What is your relationship to your child?

___Birth mother

___Birth father

___Adoptive mother

___Adoptive father

___Legal guardian

___Other relationship: specify ____________________________

___Refused to answer

Example:

If a respondent gives an answer that does not appear on the list provided, the interviewer should write it clearly and completely on the line next to “other.” Print all responses in the participant’s exact words. Do not correct people’s grammar or substitute you own words – we want to know what people say.

4. Numeric-response Questions

Some questions require writing a number in the blanks provided in the response set. If there are two spaces you need to fill in two numbers. If the person says “6” then write “06.” If the person gives a range of numbers for a response then you should probe for clarification. For example, if the respondent has answered “Uh…5, 6, or 7, I guess…” say “I can put down 5, 6, or 7, which one would like me write down.”

Shape6

A3. What is your child’s age?

___(YY)

___Refused to answer

Example of Number:

Example of Frequency:

Shape7

B2. On average, how many 8 oz. cups of tap water or beverages prepared with tap water does your child currently drink per day at home?

___ cups

___Doesn’t drink tap water

___Don’t know

___Refused to answer

Note: 1 cup = 8 oz.; 2 cups = 1 pint (16 oz.); 4 cups = 1 quart (32 oz.); 16 cups = 1 Gallon (128 oz.

In these cases, a participant’s answer may be given in terms of cups, pints, quarts, or gallons. The interviewer must convert the given liquid measure into the appropriate amount of cups per day and fill in the space beside it. For example, if someone responded with “4 cups a day” the interviewer would write “04” in the blanks next to the “cups” response. This format allows answers to be recorded easily and precisely. If the respondent answers that their child does not drink tap water, then the interviewer would mark next to the “Doesn’t drink tap water” response and leave the “cups” response blank.

Again, if the respondent answers with a range of numbers, you should probe for clarification.

5. Open-ended Questions

This type of question has no pre-coded responses at all, but simply asks you to write what the person says. It is important that you write what they say without adding or changing words.

Shape8

E1. Have you ever been told by a doctor or other health care provider that your child has or had any of the following medical conditions? Fill out the table below. Circle appropriate response and ask the respondent to specify as directed.

q. How is your child treated for their learning or behavioral problems?

Example:

6. Gathering Personal Data

Questions about the respondent’s age, marital status, and income are toward the middle of the questionnaire. You can usually ask these questions with no resistance on the part of the respondent. However, if the respondent asks why you want personal data, reassure the respondent that all of the information gathered will be combined and their individual answer will not be reported and that the information is used only to see if different groups of people are similar or different in their health. You may also add that the interview is completely confidential.

If you are matter-of-fact in your approach, you probably will not encounter any problems. People are used to giving such information about themselves to various agencies, so that gathering such data presents much less difficulty than new interviewers often imagine.

7. Don’t Knows and Refusals

When a respondent tells you “I don’t know” it can mean any number of things. For instance,

a. The respondent does not understand the question and answers “don’t know” to avoid saying he or she doesn’t understand.

b. The respondent is thinking the question over and says “don’t know” to fill the silence and to give him or her time to think.

c. The respondent may be trying to evade the issue because he or she may be uninformed or may give the wrong answer or because the question seems too personal.

d. The respondent really does not know or have an opinion on the subject.

Use an expectant pause, a reassuring remark (e.g. “Well, we’re just interested in your ideas about this.”), repeating the question, or asking a neutral question (e.g. “What are your ideas about this?”) to encourage the respondent to answer whenever possible.

There are times when, despite all efforts, the participant cannot give an answer to a question. In these cases, this non-answer must be noted as well by circling the code for don’t know (“DK”).

Occasionally, a respondent may refuse to answer a question. When this occurs, try the same reassuring remarks or probes that you would use for a “don’t know” situation. If the respondent still refuses to answer, note the refusal by circling the code for refused (“REF”).

The paper questionnaire and all forms should be completed in black ink. Do not erase or block-out mistakes. Simply use one line to cross out the mistake and indicate the correct answer.

There are important rules about the way a statement or question is formatted that tell the interviewer how it should be read to the participant or whether it should be read at all.

5. Interviewer Instructions

Most interviews will be conducted with the assistance of a laptop computer running REDCap® software. Under these conditions, the software will display the questions to be read, and entry fields for responses. The software will force the appropriate skip patterns depending upon the previous responses, minimizing the margin of error. Similarly, for phone interviews introduced to reduce the risk of COVID-19 spread the interviewer will use similar equipment and techniques.

In the event a paper form must be used - Instructions to the interviewers are placed throughout the questionnaire to help the interviewer move through the questionnaire or to select appropriate responses. The following interviewer instructions are included in the survey.

Instruction	Meaning
Go to Q-Number	Proceed to the next question, which is Q-Number
Skip to Q-Number	Skip the next question(s) and go directly to Q-Number
Enter Number of Times	Record the exact number of times for the category
If ‘Condition’ then Skip To Q-Number	If the condition is true, go directly to Q-Number. Otherwise, proceed to the next question.
Read only if necessary	Read the categories only if respondent needs them to answer properly
Other Instructions	Follow the directions specified

The instructions may be conditional on the response option chosen. Follow the instruction on the same line as the selected response. Other instructions may occur before a question, indicating which respondents should be asked the question and to what question others should skip.

11.4D Conducting the Interview: Off-site Instructions

In the special need circumstances (participant disabled or sick and unable to come to study office), the contractor would try to accommodate participant’s request to conduct interview off-site (e.g., at a participants’ home). The interviewer would bring a prepared laptop computer and a portable case containing backup paper copies of the surveys. The interviewer would travel with a nurse, and the interview and blood draw and urine collection would be conducted during the same session. Beyond these differences, the interview will be conducted in a synonymous manner as per the guidelines in Sections A and B. During the course of the COVID-19 epidemic, the home/off-site interviews will be suspended.

11.5 Complete the Blood Draw

As all participants will be offered to complete interview on the phone, blood draws may be completed during a separate appointment.. Blood collection procedures are described in the Section 10.0.

11.6. Complete Preliminary Results Form

1. Complete preliminary results form with the height, weight and blood pressure measurements

2. If any of the results are abnormal a member of the nursing staff will explain the problem and arrange for referral as needed.

3. Other results will be mailed to respondents when they are available.

11.7. Distribute Gift Card(s)

1. Give the gift card(s) to respondent.

2. Have Respondent sign for the Gift Card(s).

11.8. Non-Participant Form/on the phone?

If the biomonitoring participant in the household does not want to participate in the study ask them if they would answer just a few questions as part of the non-participant form. The form includes the following items: gender, race, age. Return the non-participant form and contact sheet to the study office.

11.9. Quality Control

Quality control will be conducted at every opportunity to ensure effective communications with study participants and among personnel, as well as verify the validity of acquired data.

With regards to telephone contact - the contractor’s call center is supervised, and all calls are recorded.

With regards to on and off-site interviewing - The REDCap® software employed in this study will have preset response ranges and will not allow the interviewer to proceed unless a response has been entered.

Participants must bring a valid photo ID or the study letter (addressed to him/her) in order to receive compensation. Implementing this will verify that the correct individuals are completing the interview and blood draw.

13.0 Data Management and Security

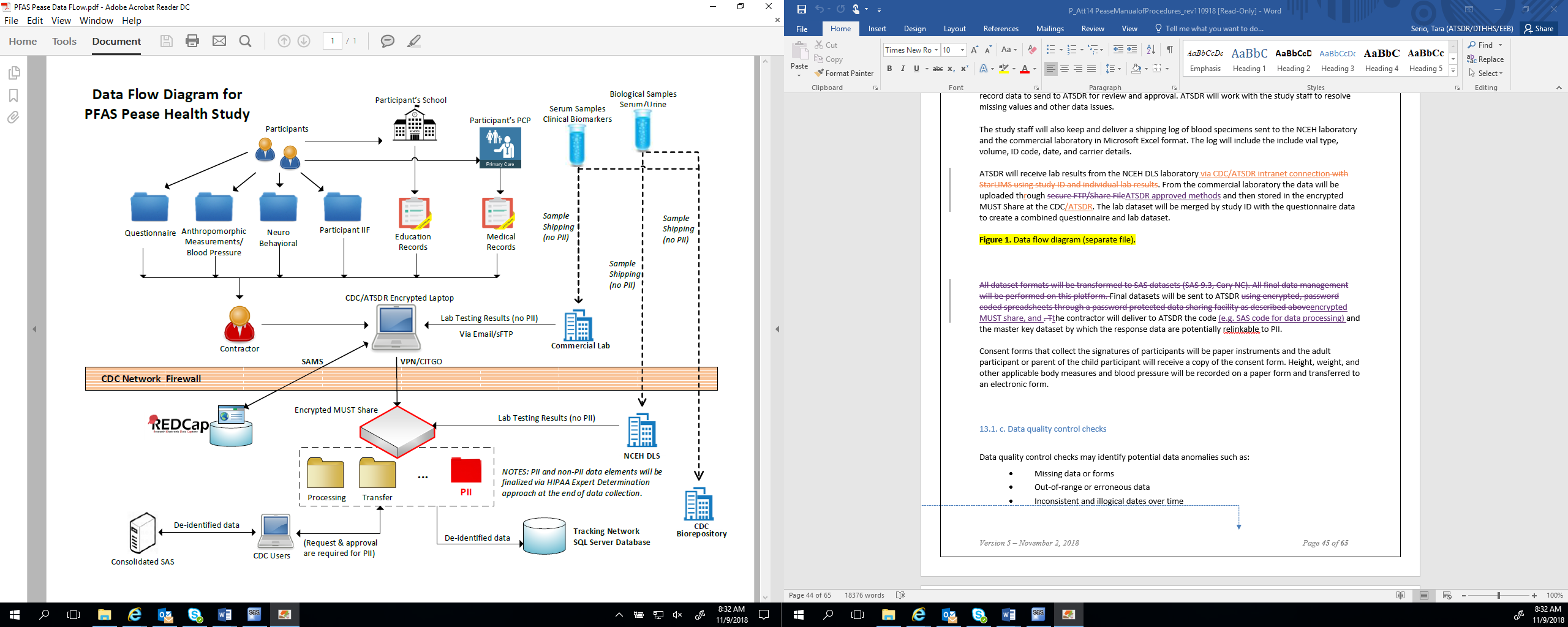

This section of the MOP describes the computer system and data management approach that will be used to support the study and details how data are to be collected, entered (e.g., if eCRFs are used), edited or corrected.

Data management for this study described below includes guidance on:

13.1. Collection and management of data

13.1a. Use and protection of personally identifiable information (PII)

The study staff-contractor will collect, manage and store PII in an already established record system (System of Records Notice [SORN] No. 09-19-0001 titled “Records of Persons Exposed to Toxic or Hazardous Substances”).

The Pease Study will be cross-sectional in design, drawing from a convenience sample of people with and without exposure to PFAS-contaminated drinking water from Pease.

Examples of the data elements to be collected are:

Participant Information (Name, SSN, DOB, race, sex, address, email, phone number, etc.)
Survey Information (consent forms, exposure routes, water consumption/source, medial history, education, occupation, etc.)
Lab Test Results (PFAS concentration values in blood and urine, lipids, liver function test, kidney function test, thyroid hormones, sex hormones, immune function, anti-body response, etc.)
Children's schools will complete a form about diagnosed learning disabilities and behavioral problems.
Medical providers will complete a form about conditions the participants have been diagnosed with.

ATSDR needs up-to-date PII for the informed consent process and to send participants' study results. ATSDR will use PII to report results to each parent of a child participant or adult participant. ATSDR will be the final recipient of the PII and will keep participant PII, including SSN, for future studies, which will include potential re-contacting of participants for the longitudinal data collections. This will require the linking of participant study identity and results from Study A to Study B, etc.

SSN will be collected at enrollment for linkage to medical records and school records. Once the linkage has occurred, the SSN will be kept with other PII in a separate access-restricted and encrypted secure share site. ATSDR will use SSN for tracking and tracing Pease Study participants for enrollment in future longitudinal studies. Overall, ATSDR will retain PII such as name, Social Security Number (SSN), current address, phone number, email address, date of birth, and the date of the participant’s blood draw and questionnaire completion.

ATSDR will store the PII in a separate master key dataset along with a study-generated ID in a designated CDC/ATSDR encrypted share drive (i.e. MUST share). This dataset will be separate from the dataset containing consolidated data from the questionnaire/survey data, laboratory data on PFAS, clinical biomarkers, neurobehavioral testing and other data used in the statistical analyses. The study-generated ID will be the variable that can link the two datasets if necessary. PII will not be linked with files used for statistical analysis and will not appear in any reports generated from this data set.

CDC/ATSDR encrypted laptops will be provided to contractor to safely collect the participants’ information and survey data. Contractors will be responsible for obtaining access to CDC/REDCap via SAMS, creating a database in CDC/REDCap (approved by CDC/ATSDR OCISO for collecting and storing PII), developing data collection forms, and administering the data collection. ATSDR will collect information in several modes: (1) hardcopy and then entered into databases (informed consent, update contact information, several forms to collect study data during the appointment, neurobehavioral test battery results); and (2) through electronic means (CAPI/CATI programmed into REDCap - eligibility screening scripts, appointment reminder telephone calls, adult and child questionnaires). Contractors will also transfer the data via VPN/CITGO to the designated encrypted CDC/ATSDR MUST share. All collected data will be transferred daily to CDC and laptops data deleted by the contractor. At the end of study, once all data sets have been delivered to ATSDR and confirmed study PI, contractor will delete all data sets in CDC REDCap database.

All laboratories involved in biochemical analyses will receive biological specimens with participants’ study-generated ID only.

The legal authority to use SSN is covered under the Comprehensive Environmental Response, Compensation and Liability Act of 1980 (CERCLA) and Superfund Amendments and Reauthorization Act of 1986 (SARA). Legal authorities governing information use and disclosure specific to the system and program are covered under the above laws and also under Consolidated Appropriation Act of 2018 and Public Health Service Act.

Note: Per the informed consent, participants may contact the ATSDR PIs with any concerns or questions about the study. The phone number will be provided. In addition, ATSDR has provided information for the CDC/ATSDR Human Research Protection Helpline at (800) 584-8814, with instructions to specify the reason for the call and to leave name, contact information, and a description of the concern.

The individual may be directed to contact the system manager to identify the record and specify the information being contested, the corrective action sought, and the reasons for requesting the correction, along with supporting information to show how the record is inaccurate, incomplete, untimely, or irrelevant. If an incident has occurred, the system manager will report the potential incident to the CDC Security Incident Response Team and the Privacy Officer. The security manager will serve as the POC to resolve the individual's concerns.

13.1b. Data Delivery/Flow

Contractor’ study staff will follow checks and quality control procedures for data entry. Only authorized study staff will receive permission to enter or manipulate the study data. Data entry from hardcopy documents will involve double entry with discrepancies compared and corrected or will be scanned and transferred using ATSDR approved devices and methods (refer to the data flow diagram for details).

Study staff will prepare draft datasets to record questionnaire responses and medical record/school record data to send to ATSDR for review and approval. ATSDR will work with the study staff to resolve missing values and other data issues.

The study staff will also keep and deliver a shipping log of blood specimens sent to the NCEH laboratory and the commercial laboratory in Microsoft Excel format. The log will include the include vial type, volume, ID code, date, and carrier details.

ATSDR will receive lab results from the NCEH DLS laboratory via CDC/ATSDR intranet connection. From the commercial laboratory the data will be uploaded through ATSDR approved methods and then stored in the encrypted MUST Share at the CDC/ATSDR. The lab dataset will be merged by study ID with the questionnaire data to create a combined questionnaire and lab dataset.

Figure 1. Data flow diagram.

Final datasets will be sent to ATSDR encrypted MUST share, and the contractor will deliver to ATSDR the code (e.g. SAS code for data processing) and the master key dataset by which the response data are potentially relinkable to PII.

Consent forms that collect the signatures of participants will be paper instruments and the adult participant or parent of the child participant will receive a copy of the consent form. Height, weight, and other applicable body measures and blood pressure will be recorded on a paper form and transferred to an electronic form.

13.1. c. Data quality control checks

Data quality control checks may identify potential data anomalies such as:

Missing data or forms
Out-of-range or erroneous data
Inconsistent and illogical dates over time
Data inconsistency across forms and visits
Not completing all fields of a "completed form" or no reason for missing data is provided

Contractor will complete data quality control checks via access to encrypted share drive at CDC. Only authorized personnel will have access to modify any collected data. Permission from study data steward and study PI will be required; log of all access activities (including information as users, storing location, duration, etc.) to PII will be required.

13.1c Access Controls and Security

Per the Pease Study Rules of Behavior, the study PI, will determine which users will be able to access the data and the specific data they will need based on their role and research goals/priorities. Least privilege access will be employed, and users will only be given access to the minimum data required for their particular analysis. Once approved by study PI, the study data manager will set up or grant appropriate permissions to users.

The contractor Project Director and Project Manager will be responsible for all required staff training and certification, periodic checks of procedures and data collection methods, privacy, and security of data, as well as access of assigned personnel to different types of data. For this information collection, all study staff will be under the direct supervision of the ATSDR on-site supervisor.

The contractor study staff will obtain appropriate office space for the blood draws, clinical assessments, questionnaire, neurobehavioral batteries administration, secure storage of questionnaires, medical and school records, and storage of blood specimens (including refrigeration) prior to shipment to the NCEH and clinical commercial laboratories.

All data and biological specimens collected in the study are the property of ATSDR. Methods to ensure least privilege access to the study information will be in place; therefore, access to identifiable information will be role-based on a need-to-know basis for the contractor investigators.

The study staff will provide details on its data security technology and methods including password protection, desktop firewalls, daily backups and server-based storage, intrusion detection, vulnerability scans of personal computers and server, laptop security, and computer encryption procedures.

Once collected from the participant, all hardcopy informed consents and data collection forms will be stored in locked files in locked rooms in the study office and at ATSDR.

Upon completion of the project and once the ATSDR has received all approved study related paper documents, the recipient will destroy those hardcopy documents not necessary to complete the study analyses or to contact study participants.

13.1d. Data Security Measures at ATSDR

Data security measures at ATSDR will comply with the CDC/ATSDR Protection of Information Resources Policy and the CDC/ATSDR IT Security Program Implementation Standards. These policies apply to all authorized ATSDR employees. All incidents involving a suspected or confirmed breach of PII must be reported to OCISO according to the policy titled OCISO/CDC Standard for Responding to Breaches of Personally Identifiable Information (PII).

The CDC/ATSDR issues identity credentials based on the Federal Information Processing Standards (FIPS) Publication 201 for Personal Identity Verification (PIV) authentication of government employees’ identities. Security measures for physical access to secured facilities include the use of PIV Cards, security guards, and closed circuit TV monitoring.

CDC/ATSDR policy requires employees to gain authorized logical access to its information systems through a unique electronic identity (User ID). The computer-controlled limits on what can be done by the user are assigned based on program roles and privilege requirements.

Authorized recipient researchers and CDC/ATSDR employees are required to:

• Complete required privacy and information security refresher training.

• Read, acknowledge, sign (if online completion is not available), and comply with the HHS Rules of Behavior, as well as other applicable CDC/ATSDR- and system-specific rules of behavior before gaining access to the CDC/ATSDR’s systems and networks.

• Adhere to the requirements set forth in the CDC/ATSDR IT Security Program Implementation Standards, and other security policies and procedures that minimize the risk to CDC systems, networks, and data from malicious software and intrusions.

• Abide by all applicable acceptable use policies and procedures regarding use or abuse of CDC/ATSDR IT resources.

All study records are subject to the ATSDR Comprehensive Record Control Schedule (CRCS), B-371, which contains authorized disposition instructions for ATSDR's administrative and program records. ATSDR is legally required to maintain its program-related records in accordance with disposition instructions contained in this comprehensive records control schedule. These retention periods have a direct impact on completing Freedom of Information Act (FOIA) requests and in applying the requirements of the Privacy Act. The current schedule requires ATSDR to retain and archive program records for a period of 75 years after the end of the study activities.

Records are retained and disposed of in accordance with the CDC Records Control Schedule (B-321) and the ATSDR Comprehensive Records Control Schedule (B-371).

13. 2. Onboarding of Staff

The contractor will notify the principal investigator as new contract staff join the study. New contractor staff will need to sign the following before beginning work on the study:

Non-Disclosure Agreement (contractors only and if applicable)
Study Specific Rules of Behavior

Both documents should be provided to the principal investigator and data manager for secure storage in the Admin folder of the encrypted MUST share.

OC: Administrative Officer for Center/Division/Branch
Forms needed: People processing Intake Profile, E-QIP, New User form (http://itsotools.cdc.gov/csb/newuser.aspx)
Trainings needed: Security Awareness Training (SAT), Safety Survival Skills Training (SSST)
CITI training required for conducting Human Subjects Research

A Public Trust Level 5 background investigation should at least have been initiated for all staff working with personally identifiable information (PII). Status for all staff should be cleared or complete.

Credential	Status
Background Investigation	Cleared
Network Access	Cleared
SAT Date	Complete
Safety Survival Skills	Cleared

Ensure form1137N for Personal Identification Verification (PIV)/Smartcard has been sent to CDC security (http://isp-v-maso-apps/EForms/download.aspx?ID=2026) in order to get access to CDC networks, computers, and systems. All federal employees working on the study will also need to meet the requirements above.

13.3. Procedures for Requesting Access to Data

The principal investigator (PI) or the data manager of the study shall maintain a data access spreadsheet with the following information at a minimum (spreadsheet/location TBD):

Date
First Name
Last Name
Contractor/FTE
CDC User ID
Approved By
Approved By Date
Data Store (share, database, etc.)
Data Set
PII included
Role (data access level)
Access Granted By
Access Granted Date
Access Removed By
Access Removed Date

This spreadsheet should be stored in the Admin folder of the encrypted MUST share for this study.

When a user requests access to data or changes the type of access to the data, a new entry should be added to this spreadsheet. PI/Data manager must ensure that user have signed the Rules of Behavior for the study before the users are granted access to any study data.

13.4. Encrypted Multi-User Share Tool (MUST)

Share Location (URI): \\cdc.gov\locker\ATSDR_Pease_PFAS_Stu.

13.4.1. User Roles:

Admin (PI and data manager)
General User (Contractors & FTE’s validating, matching or analyzing data)
Data Reader (Reviewers and anyone only needing read access)

Additional user roles may be created when needed during the study.

13.4.2. Configuration of Shares.

Following information serves as an example of how sub-shares/folders will be set up on CDC/ATSDR encrypted multi-user share drive to illustrate the data management approaches and activities.

The encrypted MUST share will have the following folders:

Admin
Raw Data
Working Folders
PII

Folder	Folder Description	Permissions
Admin	Data used only by administrators like spreadsheets, signed RoBs, procedures manuals, etc.	Admin (full), General User (no access), Data Reader (no access)
Raw Data	Data that needs to be preserved in its current form and not altered.	Admin (full), General User (read), Data Reader (read)
Working	Data that is being worked on by staff.	Admin (full), General User (read/write), Data Reader (read)

Role	Description
Admin	Principal investigators and those that will be administering permissions and encryption for the share
General User	Users that will be working (analyzing, matching, linking, etc.) with the data.
Data Reader	Users that will only need to review the data but will not or should not be able to alter it.

The working folders may have subfolders in it with the CDC user ID of each user working with data.

Shares are created and administered through the Multi-User Share Tool (MUST) at http://itsotools.cdc.gov/must/.

The example shares listed below are all encrypted. To confirm a share is encrypted, look at the path name and specifically at the part after “\\cdc\”. If the next word is “locker”, then the share is encrypted at rest. If the next word is “project”, then the share is not encrypted at rest. All shares containing PII should be encrypted.

Multi-User Shares
Path	Description	MUST Group (automatically created by ITSO Tools)	Permissions (automatically assigned by ITSO Tool)	Role(s)
\\cdc\locker\<STUDY NAME>	Share Root	<STUDY NAME>-FC	Full Control (FC) – read, write	Admin
\\cdc\locker\<STUDY NAME>	Share Root	<STUDY NAME>-RO	Read Only (RO) - read	General User, Data Reader
\\cdc\locker\<STUDY NAME>\admin	Admin Subfolder	<STUDY NAME>.Admin-fc	Full Control (FC) – read, write	Admin
\\cdc\locker\<STUDY NAME>\admin	Admin Subfolder	<STUDY NAME>.Admin-ro	Read Only (RO) - read	None
\\cdc\locker\<STUDY NAME>\working	Working Subfolder	<STUDY NAME>.Working-fc	Full Control (FC) – read, write	Admin, General User
\\cdc\locker\<STUDY NAME>\working	Working Subfolder	<STUDY NAME>.Working-ro	Read Only (RO) - read	Data Reader
\\cdc\locker\<STUDY NAME>\raw_data	Raw_Data Subfolder	<STUDY NAME>.Raw_Data-fc	Full Control (FC) – read, write	Admin
\\cdc\locker\<STUDY NAME>\raw_data	Raw_Data Subfolder	<STUDY NAME>.Raw_Data-ro	Read Only (RO) - read	General User, Data Reader

13.4.3. Granting Access to Shares

The principal investigator or the data manager will grant users access to the MUST encrypted share using the MUST administration tool at http://itsotools.cdc.gov/must/

13.5. Levels of Encryption

13.5.1. File Level Encryption

Any data containing PII must be encrypted at the file level using Symantec Encryption Desktop when not in use. Information about installing the software, configuring the encrypted share, or encrypting individual files can be found in the documents listed below:

OCISO Installation Procedure for PGP Desktop 10.1.2
OCISO Quick User Guide for PGP Desktop 10.1.2

Note: When the encrypted share is setup, the PI and the data manager (at a minimum) should be configured as administrators. Anyone who needs to use the share should be configured as a user so that they can decrypt and encrypt files in the share. MUST share permissions will be used to limit what the user can access and modify.

13.5.2. Client Whole Disk Encryption

CDC laptops have whole disk encryption (MS Bitlocker, Check Point, etc.) installed and enabled. CDC desktops do not have this software by default. If a desktop is to be used for processing or storage of study PII, then submit an ITSO helpdesk ticket to inquire whether the desktop is encrypted using whole disk encryption. If it is determined that the desktop is not encrypted, please have ITSO install the software and encrypt the hard drive.

13.6. Requests to Move PII from Encrypted Share

Every effort should be made to keep data in the encrypted MUST share. If data needs to be moved from the share to another location, the move must be approved by the principal investigator (PI) and logged in a PII Transfer spreadsheet. The PI and data manager are responsible for maintaining this spreadsheet. The spreadsheet should contain the following information at a minimum (spreadsheet/location TBD):

Date
First Name
Last Name
Contractor/FTE
CDC User ID
Approved By
Approved By Date
Data Set
PII?
Data Transferred To (Laptop Name, System Name, etc.)
Purpose
Data Deleted By
Data Deleted Date
Notes (Describe how data was deleted)

This spreadsheet should be stored in the Admin folder of the encrypted MUST share for this study.

13.7. Data Sharing and Disclosures

As part of the required "Data Management Plan," ATSDR will create de-identified data sets to share with external researchers. ATSDR plans to execute Data Use Agreement (DUA) with each requester.

Release of de-identified data to outside investigators must be approved by ATSDR. A data use agreement (DUA) will be prepared, detailing the condition of use of the data and proposed analyses for each outside project. The DUA condition of use will specify that ATSDR will not release the link between the study IDs and the participants’ PII to the outside researchers.

Disclosures are accounted for according to the referenced SORNs. Disclosures not accounted for in the SORNs will be managed and the procedures established by the system manager. Typically, this will be a manual process where the program keeps track in a spreadsheet.

ATSDR will execute the DUA with outside investigators to specify that:

1. Our data cannot be merged with public data in such a way that individuals may be identified;

2. Our data cannot be enhanced with public data sets with identifiable, or potentially identifiable, data;

3. One of the study investigators listed in Attachment 1 must be a co-investigator on any outside research project to guarantee adherence to the agreed conditions of use; and

4. Each data release will be cleared by a specific IRB request to the investigator’s home institution prior to data release.

After the approved project with the outside researchers is completed, further or secondary analyses of electronic datasets can only be undertaken with additional approval(s) from ATSDR. Written confirmation of understanding the conditions of use will be required from the lead scientist and institution. Copies of statistical code and datasets used in statistical analyses by the outside investigators will be kept by ATSDR.

Disclosure of PII to entities outside of CDC (registries, credit bureaus, states, local health departments, etc.) must be approved by the PI and logged in a spreadsheet. The spreadsheet should contain the following information at a minimum:

Date
Entity Data Disclosed To
Entity POC Name
Entity POC Email
Entity POC Phone Number
Approved By
Approved By Date
Data Set
PII?
Disclosure Purpose
Data Disclosed By
Data Disclosed Date
Data Transfer Method
Approved by ISSO
ISSO Approval Date
Notes

Disclosures should not be made without a fully executed data use agreement (DUA). DUA’s and the disclosure spreadsheet are maintained by the principal investigator and data manager. This spreadsheet, DUA’s, and any related disclosure documentation should be stored in the Admin folder of the encrypted MUST share for this study.

No data should be disclosed with any outside entity until the ISSO has determined that adequate controls exist to protect the data in transit. Written approval (usually via email) should be maintained in the Admin folder of the encrypted MUST share for the study. Approval should also be noted in the disclosure spreadsheet.

13.8. Securely Receiving/Sending Data

Use CDC’s Secure Access Management System (SAMS) electronic authentication level 3 to electronically send or receive PII. https://sams.cdc.gov Use of systems or methods, other than SAMS, to electronically send or receive PII must be approved in writing by the NCEH/ATSDR Information Systems Security Officer (ISSO).

13.9. De-identification of Data

At the end of data collection, data manager will lead and coordinate the re-identification risk assessment for the whole data set to evaluate and finalize the PII in the study data set. Once PII is finalized, all PII will be separated from non-PII data and stored and managed on the encrypted MUST share following CDC security policy and requirements.

13.10. Incident Response

Incidents involving the study data or systems storing, processing or transmitting this data should be reported to the CDC Computer Security Incident Response Team within 1 hour. Definitions of an incident can be found in the CDC security awareness training and in the references below.

Computer Security Incident Response Team (CSIRT)

Email: csirt@cdc.gov

Phone: 866-655-2245

References

Computer Security Incident Response: Host Isolation, Removal, and Mitigation (CDC-IS-2009-01)

CDC Information Security Enterprise Incident Response Plan Version 5.2

13.11. Privacy

13.11.1. Review of PII for Accuracy and Relevancy

ATSDR personnel will determine whether the PII collected via consent/parental permission/assent forms and questionnaires are accurate. Participants will be provided ATSDR contact information to allow them to inform ATSDR if their contact information changes (e.g., if they move their residence or update a phone number). These procedures are included in the administrator's guide. If ATSDR conducts a new study, the agency may employ tracking and tracing methods using SSN to obtain updated PII.

13.11.2. Inquiries

Any inquiries from individuals related to their PII in this study will be reviewed by the study PI’s. The PI’s will decide what action to take (update information, remove the individual’s information, etc.) and communicate that decision to the individual within 60 days.

If an individual is concerned that his/her PII has been used inappropriately and communicates that to the CDC, the study PI will evaluate the concern and report the incident to the CDC Chief Privacy Officer within 48 hours.

13.12. Email Usage and Web Browsing

Users that are processing study data that contains PII should not browse the web or check email on their computer/laptop. Instead, then should use citgo.cdc.gov for these activities.

13.13. Out-Processing of Staff

13.13.1. Notification

The contractor should notify the contracting officer’s representative (COR) and the PI when contract staff are changing roles in the study, leaving the project, or leaving CDC. Official out-processing should occur in People Processing (https://peopleprocessing.cdc.gov/) for users leaving CDC.

13.13.2. User System Access

If a user’s role changes or if the user leaves the project or CDC, the PI and data manager will review the data access spreadsheet. Appropriate actions (remove or change access for the user) should be taken by the PI and data manager and the spreadsheet updated.

13.13.3. Return of Equipment

The PI, the data manager, and the COR should ensure that all equipment is returned when a user leaves CDC or the project. Equipment should not be transferred to another center, division, etc. but should be returned to the PI or COR to be securely erased (reimaged).

13.13.4. PII Housekeeping

The PI and the data manager should review the PII Transfer spreadsheet when a user leaves CDC or the project. The PI and data manager should ensure that PII is removed for each entry in the spreadsheet and update the spreadsheet accordingly.

14.0 Study Completion and Close-Out Procedures

This section of the MOP outlines the Study Completion and Close-out procedures. This include the following:

Contractor and the ATSDR will verify that study procedures have been completed, data have been collected, and study intervention(s) and supplies are returned to the responsible party or prepared for destruction.
Assurance that all data queries have been completed will be provided by the contractor in form of the draft final dataset and report. Reviews and changes/revisions of those documents and acceptance by government will complete these tasks.
Assurance will be provided by contractor that correspondence and study files are accessible for external audits.
Assurance that the study records (those that are not required to be destroyed or deleted, See Section 13) are maintained and any relevant study information reported to the CDC.
Assurance that the study investigator will notify the IRB of the study’s completion and store a copy of the notification.
Preparation of a report summarizing the study’s conduct (see above).
Participant notification of the study completion.

15.1 Participant Notification

Per study protocol all participants that were able to provide blood sample will receive their individual results for PFAS analyses and clinical biomarkers. They will also be notified via Pease CAP of study results published in peer reviewed publication(s) by study staff.

15.0 MOP Maintenance

Each page of the MOP is numbered, dated, and contain a version number to facilitate any changes and/or additions. The MOP will serve as a history of the project, documenting the time and nature of any changes in procedures and policies.

See MOP Modification Log Template in Appendix D.

BIBLIOGRAPHY

For additional information, please refer to the resources listed below.

General Clinical Trial

Bucher HC, Guyatt GH, Cook, DJ, Holbrook A, McAlister FA. Users Guide to the Medical Literature. JAMA 1999;282(8):771-778.

Friedman LM, Furberg CD, DeMets DL. Fundamentals of Clinical Trials. Springer Science and Business Media, LLC, New York: 2010.

Menikoff J. Making Research Consent Transparent. JAMA. 2010 Oct; 304(15): 1713-1714.

Menikoff J. The Pardoxical Problem with Multiple-IRB Review. New England Journal of Medicine. 2010 Oct; 363(17): 1591 -1592.

Otte A, Maier-Lenz H, Dierckx RA. Good clinical practice: historical background and key aspects. Nucl Med Commun. 2005 Jul;26(7):563-74.

Shaughnessy M, Beidler SM, Gibbs K, Michael K. Confidentiality challenges and good clinical practices in human subjects research: striking a balance. Top Stroke Rehabil. 2007 Mar-Apr;14(2):1-4.

Aging Population

Avon J. Medication Use in Older Patients – Better Policy Could Encourage Better Practice. JAMA. 2010 Oct 13:304(14):1606-1607.

Campbell EG, Sinner DE. Disclosing Industry Relationships – Toward an Improved Federal Research Policy. New England Journal of Medicine. 2010 Aug 12; 363;7: 604-606.

Steinman M, Hanlon J. Managing Medications in Clinically Complex Elders – There Got to Be a Happy Medium. JAMA. 2010 Oct; 304(14): 1592-1601.

Statistical Analysis

Bassler D, Briel M, Montori VM, Lane M, Glasziou P, Zhou Q, Heels-Ansdell D, Walter SD, Guyatt GH; STOPIT-2 Study Group. Stopping randomized trials early for benefit and estimation of treatment effects: systematic review and meta-regression analysis. JAMA. 2010 Mar 24;303(12):1180-7.

Meinert CL. Clinical Trials: Design, Conduct, and Analysis. Oxford University Press, New York: 1986.

Monitoring, Quality Assurance and Adverse Event Reporting

Baigent C, Harrell FE, Buyse M, Emberson JR, Altman DG. Ensuring trial validity by data quality assurance and diversification of monitoring methods. Clin Trials. 2008;5(1):49-55.

Bains S, Bhandari M, Hanson B. Standard operating procedures: the devil is in the details. J Long Term Eff Med Implants. 2009;19(3):195-9.

Bohaychuk W, Ball G, Lawrence G, Sotirov K. Good Clinical Practice: Data Integrity Needs Upgrading. Applied Clinical Trials 1999(January):54-61.

Englev E, Petersen KP. ICH-GCP Guideline: quality assurance of clinical trials. Status and perspectives. Ugeskr Laeger. 2003 Apr 14;165(16):1659-62.

Horigian VE, Robbins MS, Dominguez R, Ucha J, Rosa CL. Principles for defining adverse events in behavioral intervention research: lessons from a family-focused adolescent drug abuse trial. Clin Trials. 2010 Feb;7(1):58-68.

Ottevanger PB, Therasse P, van de Velde C, Bernier J, van Krieken H, Grol R, De Mulder P. Quality assurance in clinical trials. Crit Rev Oncol Hematol. 2003 Sep;47(3):213-35.

Rosen DH, Johnson S, Kebaabetswe P, Thigpen M, Smith DK. Process maps in clinical trial quality assurance. Clin Trials. 2009 Aug;6(4):373-7. Epub 2009 Jul 22.

Sydes MR, Altman DG, Babiker AB, Parmar MK, Spiegelhalter DJ; DAMOCLES Group. Reported use of data monitoring committees in the main published reports of randomized controlled trials: a cross-sectional study. Clin Trials. 2004 Feb;1(1):48-59.

Sydes MR, Spiegelhalter DJ, Altman DG, Babiker AB, Parmar MK; DAMOCLES Group. Systematic qualitative review of the literature on data monitoring committees for randomized controlled trials. Clin Trials. 2004 Feb;1(1):60-79.

van der Putten E, van der Velden JW, Siers A, Hamersma EAM, for the Cooperative Study Group of Dutch Data managers. A pilot Study on the Quality of Data Management in a Cancer Clinical Trial. Controlled Clinical Trials 1987;8:96-100.

RELEVANT WEB SITES

Food and Drug Administration:

http://www.fda.gov/cber/guidelines.htm

http://www.fda.gov/ora/compliance_ref/part11/

http://www.accessdata.fda.gov/scripts/cdrh/cfdocs/cfcfr/cfrsearch.cfm

Gene Therapy, Stem Cells and Fetal Tissue:

http://grants.nih.gov/grants/policy/gene_therapy_20000307.htm

http://grants.nih.gov/grants/guide/notice-files/NOT-OD-00-050.html

http://grants.nih.gov/grants/guide/notice-files/NOT-OD-00-026.html

Information Required in NIH Grant Applications:

http://grants.nih.gov/grants/policy/policy.htm

NIH Policies for Monitoring Clinical Research:

http://grants.nih.gov/grants/guide/notice-files/not99-044.html

http://grants.nih.gov/grants/guide/notice-files/not98-084.html

http://grants.nih.gov/grants/guide/notice-files/NOT-OD-00-038.html

http://grants.nih.gov/grants/guide/notice-files/not99-107.html

http://grants.nih.gov/grants/guide/notice-files/NOT-OD-00-053.html

Implementation of NIA Policies for Human Intervention Studies

http://www.nia.nih.gov/research/dea/implementation-policies-human-intervention-studies

Guidelines for Writing Informed Consent Documents

http://ohsr.od.nih.gov/info/sheet6.html

APPENDIX A - ACRONYM GLOSSARY

Adverse Event (AE) – Any untoward or unfavorable medical occurrence in a clinical research study participant, including any abnormal sign (e.g. abnormal physical exam or laboratory finding), symptom, or disease, temporally associated with the participants’ involvement in the research, whether or not considered related to participation in the research.
Case Report Form (CRF) – A printed, optical, or electronic (eCRF) document designed to capture all protocol-required information for a study.
Code of Federal Regulations (CFR) - is an annual codification of the general and permanent rules published in the Federal Register by the executive departments and agencies of the Federal Government.
Coordinating Center (CC) – A group organized to coordinate the planning and operational aspects of a multi-center clinical trial. CCs may also be referred to as Data Coordinating Centers (DCCs) or Data Management Centers (DMCs).
Data and Safety Monitoring Board (DSMB) –A group of individuals independent of the study investigators that is appointed by the NIA to monitor participant safety, data quality and to assess clinical trial progress.
Food and Drug Administration (FDA) – An agency within the U.S. Department of Health and Human Services (DHHS) responsible for protecting the public health by assuring the safety, efficacy, and security of human and veterinary drugs, biological products, medical devices, nation’s food supply, cosmetics, and products that emit radiation.
Good Clinical Practice (GCP) – A standard for the design, conduct, performance, monitoring, auditing, recording, analyses, and reporting of clinical trials that provides assurance that the data and reported results are credible and accurate, and that the rights, integrity, and confidentiality of trial participants are protected.
Health Insurance Portability and Accountability Act (HIPAA) Privacy Rule – The first comprehensive Federal protection for the privacy of personal health information. The Privacy Rule regulates the way certain health care groups, organizations, or businesses, called covered entities under the Rule, handle the individually identifiable health information known as protected health information (PHI).
Institutional Review Board (IRB)/Independent Ethics Committee (IEC) – An independent body constituted of medical, scientific, and nonscientific members whose responsibility it is to ensure the protection of the rights, safety, and well-being of human subjects involved in a trial by, among other things, reviewing, approving, and providing continuing review of trials, protocols and amendments, and of the methods and material to be used to obtaining and documenting informed consent of the trial participant.
Manual of Procedures (MOP) – A “cook book” that translates the protocol into a set of operational procedures to guide study conduct. A MOP is developed to facilitate consistency in protocol implementation and data collection across study participants and clinical sites.
Principal Investigator (PI) - The individual with primary responsibility for achieving the technical success of the project, while also complying with the financial and administrative policies and regulations associated with the award. Although Principal Investigators may have administrative staff to assist them with the management of project funds, the ultimate responsibility for the management of the sponsored research award rests with the Principal Investigator.
Quality Control (QC) – The internal operational techniques and activities undertaken within the quality assurance system to verify that the requirements for quality of trial related activities have been fulfilled (e.g., data and form checks, monitoring by study staff, routine reports, correction actions, etc.)
Safety Officer (SO) - The Safety Officer is an independent individual, usually a clinician, who performs data and safety monitoring activities in low-risk, single site clinical studies. The Safety Officer advises NIA Program Director regarding participant safety, scientific integrity and ethical conduct of a study.
Serious Adverse Event (SAE) – Any adverse event that:

Results in death
Is life threatening, or places the participant at immediate risk of death from the event as it occurred
Requires or prolongs hospitalization
Causes persistent or significant disability or incapacity
Results in congenital anomalies or birth defects
Is another condition which investigators judge to represent significant hazards

Standard Operating Procedure (SOPs) – Detailed written instructions to achieve uniformity of the performance of a specific function across studies and patients at an individual site.

Appendix B - Sample Screen Log

Study: [Study Name]

Site: [Site Name]

Investigator: [Investigator Name]

Date of Birth	Gender	Screening Date	Consent Obtained	Enrolled (if no, indicate reason from codes below)	Date Enrolled
/ / mm/dd/yyyy	M F	/ / mm/dd/yyyy	Yes No	Yes No	/ / mm/dd/yyyy
/ / mm/dd/yyyy	M F	/ / mm/dd/yyyy	Yes No	Yes No	/ / mm/dd/yyyy
/ / mm/dd/yyyy	M F	/ / mm/dd/yyyy	Yes No	Yes No	/ / mm/dd/yyyy
/ / mm/dd/yyyy	M F	/ / mm/dd/yyyy	Yes No	Yes No	/ / mm/dd/yyyy
/ / mm/dd/yyyy	M F	/ / mm/dd/yyyy	Yes No	Yes No	/ / mm/dd/yyyy

Screening Number

Date of

Birth

Gender

Screening

Date

Screening

Status

(use codes below)

Consent Obtained

Enrolled

(if no, indicate

reason from codes below)

Date

Enrolled

/ /

mm/dd/yyyy

/ /

mm/dd/yyyy

Yes

/ /

mm/dd/yyyy

/ /

mm/dd/yyyy

/ /

mm/dd/yyyy

Yes

/ /

mm/dd/yyyy

/ /

mm/dd/yyyy

/ /

mm/dd/yyyy

Yes

/ /

mm/dd/yyyy

/ /

mm/dd/yyyy

/ /

mm/dd/yyyy

Yes

/ /

mm/dd/yyyy

/ /

mm/dd/yyyy

/ /

mm/dd/yyyy

Yes

/ /

mm/dd/yyyy

Sample Screen Status Codes:	1-Eligible	If not eligible, Reason:	1-Inclusion # (specify)
	2-Eligible, declined participation		2-Exclusion# (specify)
	3-Not Eligible		3-Other (specify)
	4-Eligible, lost to follow-up
	5-Other, specify in space provided

Appendix C - Sample Schedule of Events

Visit Description	Screening	*TP	*TP	*TP	*TP	*TP	*TP	*TP	**FU	**FU	**FU	**FU	**FU	**FU
Study Visits/ Study days (or weeks)	Visit-1 Day-14 to Day -1	Visit 1 Day 0	2 W1	3 W2	4 W3	5 W4	6 W8	Final Visit W10	8 W12	9 W14	10 W16	11 W18	12 W20	13 W22
Informed Consent	X
12-lead EKG	X				X			X	X					X
Medical History	X
Prior Medications	X
Physical Exam	X							X
Vital Signs	X							X
Chemistries	X		X	X	X			X	X					X
Liver Function Tests	X		X	X	X			X	X					X
Hematology	X		X	X	X			X	X					X
Pregnancy Test	X				X			X	X					X
Investigational Agent Administration		X	X	X	X	X	X	X
Concomitant Medications		X	X	X	X	X	X	X	X	X	X	X	X	X
Adverse Events		X	X	X	X	X	X	X	X	X	X	X	X	X
Study completion														X

*TP – Treatment Phase

**FU – Follow-up Phase

Appendix D - Sample MOP Modification Log

MOP MODIFICATION LOG

Section #	Version #	Date Modified	Page #	Text Location	Brief Modification Summary

Appendix E - Examples of Administrative Forms

An Administrative Form constitutes any form that would not be included in the study database. The following is a list of administrative forms that should be considered for a study. Given that each study is unique, forms could be omitted and/or added at the investigator’s discretion depending on the nature of the study.

Participant Identification Code List - Used to document the participant’s study identification number, name, and other identifying information. Must be stored securely and separate from research records since it is the link between a study ID and participant’s name.

Record of Destruction of Clinical Product* - This log is used to document the destruction of any unused study drug. The date and time of incineration as well as how many vials/pills were incinerated must be recorded. This record should be attached to the Study Drug Accountability Record.

Screening and Enrollment Log - Used to list participants screened; includes those who fail screening and those who are enrolled.

Site-Signature Log /Delegation of Authority Log* - Used to list all study personnel and their specific responsibilities, signatures, and dates of obligation during the conduct of a clinical research study. Note: For a template form, please see the NIA Toolbox Study Forms page.

Site Visit Log - Records individuals visiting the site. The most common reasons for visits are site initiation, monitoring, training, and close-out.

Study Drug Accountability Record* – Records help ensure that study drugs have not gone astray and help find them if they do. This record should be maintained in the Pharmacy by the research pharmacist and must not be shared with other members of the study team.

Telephone Contact Log - To record and track study-related telephone contact discussions with a study participant.

Training Log* - Documents study-specific training completed by staff exhibiting their qualifications to perform tasks involved in the clinical research study. Other training may also be listed on this log.

*Forms could also be considered a regulatory document rather than an administrative form.

Appendix F – CDC IRB Approval

M emorandum

Date

September 12, 2018

From

Jerrell Little

IRB-Committee 2 Administrator

Human Research Protection Office

Subject

CDC IRB Approval of New Protocol 7161.0, "Human health effects of drinking water exposures to per- and polyfluoroalkyl substances (PFAS) at Pease International Tradeport, Portsmouth, NH (Pease Study - Proof of Concept)" (Expedited)

MARIAN PAVUK, PhD, MD

ATSDR/DTHHS

CDC's IRB-Committee 2 has reviewed the request for approval of new protocol 7161.0, "Human health effects of drinking water exposures to per- and polyfluoroalkyl substances (PFAS) at Pease International Tradeport, Portsmouth, NH (Pease Study - Proof of Concept)" and has approved the protocol for the maximum allowable period of one year. CDC IRB approval will expire on 8/26/2019. The protocol was reviewed in accordance with the expedited review process outlined in 45 CFR 46.110(b)(1), categories 2a, 2b, 4, and 7.

This approval confirms that CDC’s IRB-Committee 2 has determined that a Certificate of Confidentiality applies to this study and protects the privacy of individuals who are subjects of this research, pursuant to subsection 301(d) of the Public Health Service Act.

The IRB determined that the study poses minimal risk to subjects. The IRB approved the inclusion of pregnant women under 45 CFR 46.204 and the inclusion of children under 45 CFR 46.404.

If other institutions involved in this protocol are being awarded CDC funds through the CDC Procurement and Grants Office (PGO), you are required to send a copy of this IRB approval to the CDC PGO award specialist handling the award. You are also required to verify with the award specialist that the awardee has provided PGO with the required documentation and have approval to begin or continue research involving human subjects as described in this protocol.

As a reminder, the IRB must review and approve all human subjects’ research protocols at intervals appropriate to the degree of risk, but not less than once per year. There is no grace period beyond one year from the last IRB approval date. It is ultimately your responsibility to submit your research protocol for continuation review and approval by the IRB. Please keep this approval in your protocol file as proof of IRB approval and as a reminder of the expiration date. To avoid lapses in approval of your research and the possible suspension of subject enrollment and/or termination of the protocol, please submit your continuation request at least six weeks before the protocol's expiration date of 8/26/2019.

Any problems of a serious nature should be brought to the immediate attention of the IRB, and any proposed changes to the protocol should be submitted as an amendment to the protocol for IRB approval before they are implemented.

If you have any questions, please contact your National Center Human Subjects Contact or the CDC Human Research Protection Office at (404) 639-7570 or email at huma@cdc.gov).

CC:

NCEH/ATSDR Human Subjects

Appendix G – Pease Study Restart Plan

July 23, 2020

Introduction

The Pease Study is the first site of the national, Multi-site Study, which will look at the human health effects of PFAS exposure through drinking contaminated water. The main goals of the study are to 1) evaluate the procedures and test the study protocols in order to identify any issues that need to be addressed before embarking on a multi-site study; and 2) examine associations between measured and historically reconstructed serum levels of PFAS including PFOA, PFOS, and PFHxS, and selected health outcomes as described below and detailed in study hypotheses.

On April 30, 2020, CDC/ATSDR paused the Pease Study to protect the health of residents of Portsmouth, NH and surrounding communities and stop further spread of COVID-19. ATSDR canceled all study appointments scheduled until the end of June 2020 and closed the study call center and operations office in Portsmouth. The Pease Study addresses a critical public health need to further understand the relationship between PFAS exposure and health effects. As such, the Pease Study should resume given New Hampshire’s downward trajectory of COVID-19 positive tests as a percent of total tests within a 14-day period, robust testing and contact tracing program, and open capacity at hospitals and urgent care centers to treat all patients. Restarting the Pease Study will require that precautions be put in place to ensure that staff and members of the public are protected from COVID-19. This plan is based on interim CDC guidance for non-COVID-19 public health activities that require face-to-face interaction during the COVID-19 pandemic and will be used to outline practices for conducting Pease Study activities.

Changes in the initial Pease Study procedures are proposed to reduce or eliminate close contact (within 6 feet) between study staff and the public when possible to prevent the spread of SARS-CoV-2 during study activities. The precautions and personal protective equipment (PPE) recommended in this plan will be reevaluated at least monthly and more often as needed to ensure they are still in line with CDC and state COVID-19 guidance and may be revised to add or remove precautions as needed. Precautions may vary from site to site based on conditions on the ground and the timing of when activities are conducted.

Plan Objectives

minimize risk of exposure, illness, and spread of disease among staff conducting Pease Study;
minimize risk of exposure, illness, and spread of disease among members of the public and Pease study participants at Pease Study activities; and
preserve essential functions of the Pease Study.

Schedule Considerations

The state of New Hampshire’s COVID-19 Stay at Home 2.0 order expired on June 15. Hotels and other forms of lodging are operating. Guests who are not from New Hampshire will have to sign a form saying they quarantined at home for at least 14 days before entering the state. Childcare facilities are allowed to open, as long as children and providers are screened daily for COVID-19 symptoms. Group sizes are limited to ten, and staff are advised to keep the same group of children together, to avoid any potential spread. State health officials recommend against children wearing masks due to the risk of choking or strangulation. Frequent hand washing, however, is highly encouraged. Decisions about when to restart activities will be made in consultation with the Pease CAP as well as state and local public health officials.

Scheduling study activities will take into account:

the level of local COVID-19 transmission (number of new cases, emergency department visits, and percent positive for testing in each community as available)
state and local guidance/mandates
other site-specific factors as described later in this document

COVID-19 Safety Precautions in the Pease Study

Staffing: ATSDR’s Pease Study contracting company, Abt Associates, has staff located in New Hampshire. Abt’s Project Director and Project manager are expected to travel to the Pease Study site once a month. Abt’s staff will be in charge of all Pease Study field activities relating to the study operations office, questionnaire administration, sample collection and processing. CDC/ATSDR staff are not expected to provide in-person support of these activities.

Study staff will be provided with clear information about new procedures and PPE requirements (as described in table below). All PPE will be provided to staff prior to initiation of activities. Staff will have an opportunity to ask questions about the precautions and PPE requirements. Staff at higher risk for severe illness from COVID-19, including age (older adults) and underlying medical conditions, will be encouraged to discuss any concerns with their supervisors.

Cloth face coverings are required for the protection of others and are not PPE for the wearer. Cloth face coverings should not be placed on anyone who has trouble breathing, or is unconscious, incapacitated or otherwise unable to remove the mask without assistance. The cloth face cover is meant to protect other people in case you are infected. In situations where PPE is required for respiratory protection, staff will be provided with appropriate PPE (surgical masks or N95 respirators). In cases where participants arrive to an appointment without a cloth face covering, they will be provided with a surgical mask due to disposability. If participants are unable to wear a cloth face covering or surgical mask due to medical conditions, staff will maintain at least six feet of distance at all times and will wear a surgical mask if closer interaction is required.

Community Meetings:

Pease Community Advisory Panel (CAP): ATSDR holds in person meetings with the Pease CAP on a quarterly basis. The next CAP meeting scheduled for June 23, 2020 will be held online. The Pease team and the CAP will decide then whether future meetings will be held in person or online.

Pease Study Recruitment Outreach Activities: CDC/ATSDR and members of the Pease CAP plan to conduct media and community outreach to increase awareness and enrollment of the Pease study. Example activities include, conduct media interviews, “lunch and learn” presentations at the Tradeport businesses, and staff tables at local events and festivals. Many of the proposed outreach activities are dependent on reopening of local businesses and resumption of previously scheduled community events. ATSDR will work closely with the Pease CAP to identify and schedule outreach activities. Media interviews will be conducted over the phone and videoconference. In person activities, such as “Lunch and Learn” opportunities will be held online or structured to ensure less than ten participants at a time to ensure social distancing of study staff and the public.

Ahead of any in-person meetings, CDC/ATSDR staff will communicate guidance for social distancing, wearing a cloth face covering, and symptom screening with meeting participants. All attendees will be screened by for COVID-19 symptoms with a symptom questionnaire, visual assessment, and temperature check prior to entry and sessions will be setup to promote social distancing of staff from community members and among community members. ATSDR will deny entry to participants if they report symptoms of COVID-19, have a temperature over 100.4° F, or if CDC/ATSDR staff observe signs associated with COVID-19 (e.g. coughing, feeling feverish). If a participant is denied physical entry, ATSDR staff will offer to have a phone conversation to answer any questions they might have.

Cloth face coverings for all study staff e and community members will be used in accordance with CDC guidance and hand washing facilities with soap and water will be provided. Hand sanitizer will also be available near the door, and surgical masks will be provided for participants who do not bring their own cloth face covering. Cloth face coverings are not PPE and will be worn by staff and community members to protect others. If a participant exhibits symptoms after entering the facility they will be asked to leave and the facility will be cleaned and disinfected with a disinfectant listed on EPA List N, following CDC guidance, before reopening.

Screening of Contract Staff and Study Participants

Cough
Shortness of breath or difficulty breathing
Fever
Chills
Muscle pain
Sore throat
New loss of taste or smell
Exposure to people known to have disease or symptoms listed above in the last 14 days

If any staff develop symptoms they will be instructed not to come to work, to inform the Pease Study Coordinator, and to contact the Occupational Health Clinic (OHC) 404-639-3385. If a staff member develops symptoms consistent with COVID-19, ATSDR will pause all enrollment activities. If the staff member subsequently tests negative, we will consult with CDC and local/state public health professionals before resuming activities. If the staff member tests positive ATSDR will notify all staff and participants who have been in contact with the positive individual and consult with OSSAM and local/state public health to determine additional actions.

Pease study participants will be informed of screening procedures and be required to wear a cloth face mask to their appointment when appointments are scheduled. They will also be instructed not to come for their appointment if they are experiencing COVID-19 symptoms (as defined in the list above). Participants will be asked about symptoms in a reminder call the day before their scheduled appointment. If participants are found to have symptoms during screening, they will be denied entry to the study office and will be encouraged to consult with their primary care provider. If a participant exhibits symptoms after entering the facility they will be asked to leave, encouraged to consult with their primary care provider, and high touch surfaces will be disinfected with a disinfectant listed on EPA List N. Participants will be asked to inform study staff voluntarily if they test positive to COVID-19 following identification of symptoms during screening procedures.

Biological Sample Collection: All staff will be screened daily for COVID-19 symptoms prior to entry to the sample collection location using a symptom questionnaire and temperature check. Staff will follow current guidance for PPE as outlined in the table at the end of this document. Staff will also be instructed to stay home (or at their hotel) if they are experiencing any COVID-19 symptoms and will be screened twice daily. If symptoms develop, staff will be instructed to contact the Occupational Health Clinic (404 639 3385) for guidance in appropriate actions to take.

Study participants will be instructed not to come for their appointment if they are experiencing COVID-19 symptoms (as defined in the list below). All participants will be informed of screening procedures and asked to wear a cloth face covering to their appointments. Participants will be asked about symptoms in a reminder call the day before their scheduled appointment. If community members are found to have symptoms during screening, they will be denied entry to the sample collection venue and will be encouraged to consult with their primary care provider. If a participant exhibits symptoms after entering the facility they will be asked to leave and the facility will be cleaned and disinfected, with a disinfectant listed on EPA List N, following CDC guidance, before reopening. If there is a potential exposure, CDC/ATSDR staff will contact the Occupational Health Clinic for guidance on appropriate actions. Staff will share information about the interaction that led to a suspected exposure and will follow guidance from the clinic on appropriate actions. All staff in the field will be monitored for symptoms during their travel and for 14 days after returning regardless of any potential exposure.

Additional actions that will be used to reduce the potential for SARS-CoV-2 transmission include:

Scheduling appointments such that never more than 9 individuals (staff and participants, based on the size and configuration of the space) are in the facility at the same time
Increase physical space between employees and participants (e.g., physical barriers such as partitions)
Use signs, tape marks, or other visual cues such as decals or colored tape on the floor, placed 6 feet apart, to indicate where to stand when physical barriers are not possible
Requiring use of surgical masks for staff and cloth face coverings or surgical masks for participants
Limiting sampling area access to a maximum of 9 people (based on area size and configuration) at a time, with a door monitor allowing one person inside for each person that exits
Providing proper hand washing facilities
Providing hand sanitizer and surgical masks for participants who do not bring their own cloth face covering upon entry into the facility for a physical appointment
Providing signage showing reasons for precautions and proper wear of cloth face coverings

Questionnaire: Questionnaires will be transitioned from in-person to telephone administration. Copies of questionnaires will be emailed, and verbal consent will be obtained, before administering the questionnaire by phone. The participant will sign the informed consent form when visiting the office for the blood draw and body measurements after being screened. This change will reduce contact time between participants and study staff.

Administrative controls, including staff education on COVID-19, instruction on appropriate PPE for given tasks and how to don and doff PPE, hand hygiene instruction, how to briefly and sensitively acknowledge with participants PPE use and note COVID-19 infection control measures taken to protect participants, and instructions for staff to remain home if experiencing any symptoms will be instituted.

There will be a separate area for eating/drinking for staff. These areas will be set up with limited seating to promote social distancing. Breaks areas will be cleaned and disinfected a minimum of two times per day. Juice or other supplies for phlebotomy recovery will be provided only if participants experience symptoms associated with giving blood (feeling faint etc.), will be kept in a separate area, and will be consumed only in a separate unused area near the phlebotomy area. Participants will not enter the staff food area.

Travel Guidelines

ATSDR staff normally is not present during the data and blood collection at the study office and does not interact with contractor staff or participants during the study office visit.

ATSDR staff travel and interaction with contractor staff only occurs during the site visits (which are not planned at this time).

During travel ATSDR staff will be directed to the considerations at https://www.cdc.gov/coronavirus/2019-ncov/travelers/travel-in-the-us.html. Staff will also be provided with the guidance below.

Protect yourself and others during your trip:

Clean your hands often.
- Wash your hands often with soap and water for at least 20 seconds especially after you have been in a public place, or after blowing your nose, coughing, or sneezing.
- If soap and water are not readily available, use a hand sanitizer that contains at least 60% alcohol. Cover all surfaces of your hands and rub your hands together until they feel dry.
Avoid touching your eyes, nose, and mouth.
Avoid close contact with others.
- Keep 6 feet of physical distance from others.
- Avoiding close contact is especially important if you are at higher risk of getting very sick from COVID-19.
Wear a cloth face covering in public.
Cover coughs and sneezes.
Pick up food at drive-throughs, curbside restaurant service, or stores. Do not dine in restaurants if that is prohibited by state or local guidance.

When staying in a hotel:

Take the same steps you would in other public places—for example, avoid close contact with others, wash your hands often, and wear a cloth face covering.
When you get to your room, clean and disinfect all high-touch surfaces. This includes tables, doorknobs, light switches, countertops, handles, desks, phones, remote controls, toilets, and sink faucets.
- Bring an EPA-registered disinfectant and other personal cleaning supplies, including cloths and disposable gloves.
Wash any plates, cups, or silverware (other than pre-wrapped plastic) before using.

Protective Measures

Specific study activities are shown in the table below with recommended PPE, and additional precautions. All PPE for study staff will be provided by CDC/ATSDR. Contractor will provide PPE originally required for study CDC/ATSDR will provide additional PPE as needed from the table below.

Activity	Description	PPE	Additional Precautions
Travel	Time spent in ride share/public transportation, in airport, on airplane, time spent in public venues while traveling	None	Frequent handwashing Cloth face coverings General travel precautions Ride sharing and public transportation
Biological sample collection screener	Greet participants outside the study office, take temperature, ask symptom screening questions	Disposable surgical mask, disposable gloves	Confirm participants are symptom and fever free before allowing entry to study office, Ensure occupancy limit allows entry
Urine sample processing	Take urine samples from participants, process samples and place in storage	Disposable surgical mask, disposable gloves (already included in protocol)	Frequent handwashing Cleaning and disinfection of surfaces between participants/groups
Blood sample collection / processing	Collect blood samples	Phlebotomists: Cloth face covering or disposable surgical mask, disposable gloves (already included in protocol), disposable gown (already included in protocol), face shield or goggles (already included)	Frequent handwashing Cleaning and disinfection of surfaces between participants Blood and plasma collection precautions
Neurobehavioral testing	Conduct neurobehavioral testing	Cloth face covering or disposable surgical mask, face shield, disposable gown, disposable gloves, wipe down any materials used for testing between appointments.	Frequent handwashing Cleaning and disinfection of surfaces between participants/groups
Body measurements	Collect body measurements	Cloth face covering or disposable surgical mask, disposable gown, disposable gloves, wipe down any materials used for testing between appointments.	Frequent handwashing Cleaning and disinfection of surfaces between participants/groups

Version 7 – June 22, 2020 Page 59 of 68

File Type	application/vnd.openxmlformats-officedocument.wordprocessingml.document
File Title	P_Att14 PeaseManualofProcedures
Author	Trey Prickett
File Modified	0000-00-00
File Created	2021-10-07

Manual of Procedures

P_Att14 PeaseManualofProcedures_08032020_clean.docx

Human Health Effects of Drinking Water Exposures to Per- and Polyfluoroalkyl Substances (PFAS) at Pease International Tradeport, Portsmouth, NH (The Pease Study)
